O-ring lubrication reduces assembly friction, helps the seal slide into position, and lowers the chance of pinching, twisting, or cutting the rubber. The goal is usually a thin, even film, not a groove packed with grease.
Lubrication cannot correct the wrong seal. First confirm dimensions with the how to measure an O-ring guide and the O-ring size chart, then verify the elastomer and service fluid with the material guide and chemical compatibility guide.
Why O-Ring Lubrication Matters
During assembly, dry rubber can grip metal or plastic surfaces instead of sliding. That friction can roll the cross section, shave an edge, or leave the ring partly outside the groove. A compatible lubricant creates a temporary low-friction film and helps the seal seat evenly.

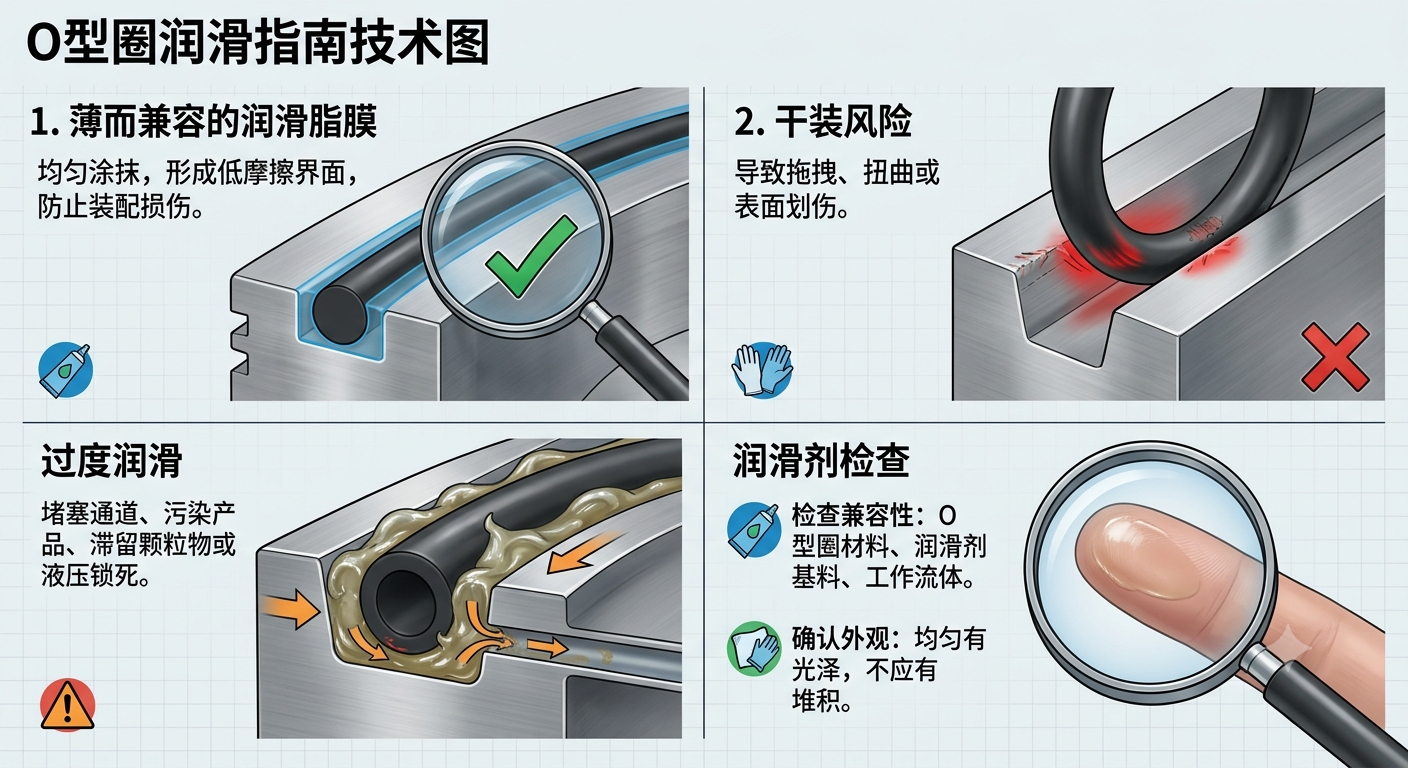

| Condition | Likely Result | Recommended Action |
|---|---|---|
| Thin compatible film | Lower friction and more even seating | Coat the surface lightly and uniformly |
| Dry installation | Dragging, twisting, or surface damage | Lubricate when the design and process allow it |
| Too much grease | Contamination, trapped debris, or assembly problems | Remove excess; more is not automatically better |
| Incompatible lubricant | Swelling, softening, shrinkage, or loss of strength | Check seal, lubricant, and process fluid together |
| Dirty lubricant | Particles carried into the sealing interface | Use clean tools and controlled containers |
| Process-prohibited lubricant | Product contamination or compliance failure | Follow equipment and industry requirements |
Choose a Compatible Lubricant
Compatibility has three parts: the O-ring material, the lubricant base, and the fluid the seal will contact in service. A grease that is harmless to one elastomer may change another. When oil and grease resistance is required, NBR O-rings are often considered, but the exact oil, temperature, additives, and exposure time still matter.
Also check hardness and movement. The O-ring hardness guide explains how 70A and 80A seals behave, while static vs dynamic O-rings covers why moving seals need closer attention to friction, wear, and lubricant retention.
How Much Lubricant Should You Apply?
Apply enough to leave the O-ring uniformly glossy or lightly wet. There should not be large blobs, filled cavities, or grease pushed ahead of the seal. A thin film is easier to control and less likely to trap dust or interfere with assembly.
Over-greasing is especially risky where excess lubricant can enter a product stream, block a small passage, attract abrasive particles, or create hydraulic lock in a closed cavity.
When Should an O-Ring Be Installed Dry?
Dry installation may be required in oxygen service, paint and coating systems, clean processes, food or medical equipment, or assemblies where the manufacturer prohibits lubricant. In these cases, follow the approved procedure and use the specified seal, surface finish, tooling, and cleanliness controls.
Never choose dry installation only because lubricant is inconvenient. If a dry process repeatedly damages seals, review the lead-in geometry and the O-ring installation mistakes guide before changing materials.
Practical Lubrication Checklist
- Confirm the O-ring material and hardness
- Identify the operating fluid and temperature range
- Verify that the lubricant is approved for both
- Clean the groove, seal, tools, and applicator
- Apply a thin, even film over the O-ring surface
- Seat the ring without dragging, twisting, or pinching it
- Inspect the assembly and remove visible excess
Common Lubrication Mistakes
Using an unknown shop grease, mixing lubricants, dipping seals into a contaminated container, or assuming every silicone grease is safe are common errors. Lubricant can also hide a damaged surface, so inspect the ring before coating it.
If a seal still leaks, check O-ring failure causes rather than adding more grease. Leakage can come from the wrong size, insufficient squeeze, extrusion, pressure, surface damage, or compression set. Spare seals should also follow good rubber O-ring storage practices before use.
FAQ
Should every O-ring be lubricated?
No. Many benefit from lubrication during assembly, but some processes prohibit it. Follow the equipment specification and compatibility requirements.
Can I use petroleum grease on NBR O-rings?
NBR commonly handles many petroleum oils and greases, but additives, temperature, and exposure conditions vary. Confirm the specific combination before use.
How do I know if I used too much grease?
If grease collects in blobs, fills the groove, squeezes into a passage, or must be wiped from nearby surfaces, the application is probably excessive.
Can lubricant fix a leaking O-ring?
Usually not. Lubricant helps assembly and may reduce friction, but it does not correct wrong dimensions, damaged hardware, incompatible material, or poor groove design.
Final Tip
Use the least amount of an approved lubricant needed to create an even film. When the correct lubricant is unknown, pause and verify compatibility before assembly. For recurring maintenance requirements, keep approved materials and sizes consistent through an organized kit or bulk quote.
