Compression set is the permanent flattening that remains after an O-ring has been squeezed for time, heat, and load. A seal can look fine when it is new and still lose rebound after service, which lowers sealing force and raises leak risk.
The safest starting point is still to measure the old seal and the groove with the how to measure an O-ring guide, then compare the result with the size chart before you order replacements. Compression set becomes more important when the seal sits under load for a long time or runs hot.

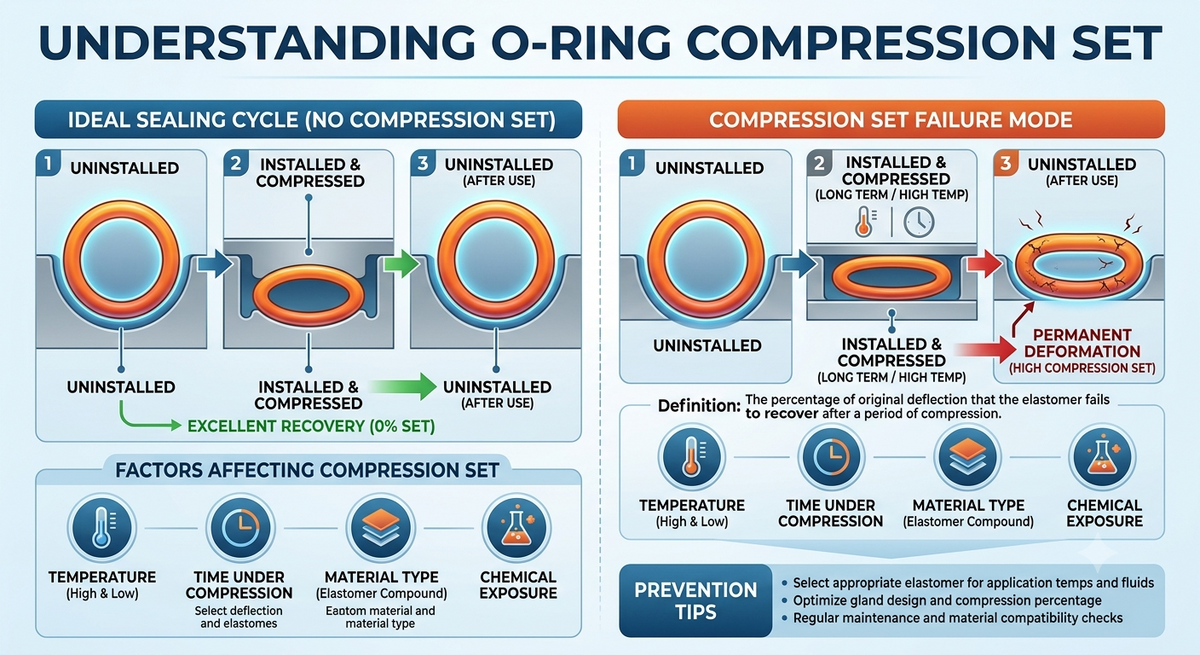

What Compression Set Means
Compression set is the loss of elastic recovery after a rubber part has been compressed. When you remove a healthy O-ring from a groove, it should spring back close to its original shape. A seal with high compression set stays partly flattened.
That change matters because an O-ring seals by controlled squeeze. Once the seal stops bouncing back, contact pressure drops and leakage becomes more likely.
Why Buyers Should Care
Compression set is one of the most common reasons a seal that looked acceptable during assembly fails later in service. The part may still fit, but it no longer presses against the groove the way it should.
This is especially relevant for static joints, which is why the static vs dynamic O-rings article is a helpful companion. Static seals spend more time under constant squeeze, so the material choice matters even more than in some moving applications.
| Factor | Low Compression Set | High Compression Set |
|---|---|---|
| Recovery after unload | Rebounds well | Stays flattened |
| Leak risk | Lower | Higher after service or heat |
| Feel after removal | Still resilient | Hard, flat, or stiff |
| Buyer signal | Normal wear pattern | Material or service condition may be wrong |
What Increases Compression Set
- High temperature for long periods
- Too much squeeze in the groove
- Material that does not match the fluid or heat level
- Repeated load cycles without enough recovery time
- Aging from storage, ozone, or chemical exposure
For oil service, NBR O-rings are common, but oil alone does not solve compression set. For water, steam, or weather exposure, EPDM O-rings may behave differently. The right material still depends on temperature, chemistry, and the actual sealing job.
The material guide and the O-ring hardness guide are the quickest references when you need to compare compound and durometer before buying.
How Buyers Can Reduce Risk
Start with the operating conditions, not just the part number. A seal that works in a cool static joint may not hold up in a hot enclosure or a long-stored spare kit.
- Confirm the service temperature and fluid first
- Measure the groove and avoid oversqueeze
- Match material and hardness to the job
- Replace older stock before it ages too far
- Use the O-ring kits for maintenance teams article to organize common sizes for repeat repairs
- Send a bulk quote when you need a recurring size/material mix
Signs a Seal May Have Too Much Compression Set
A seal with excessive compression set often comes back from service looking flat on one side, hard to the touch, or unable to recover its round cross section. In practice, the leak may show up after the machine has been running hot or after a long shutdown.
If the old seal looks crushed, do not copy its size alone. Recheck the groove, the original material, and the application before ordering more of the same part.
Buyer Checklist
- Check whether the joint is static or moving
- Measure inside diameter, cross section, and groove dimensions
- Review the fluid, temperature, and storage time
- Confirm material compatibility before choosing a replacement
- Inspect the removed seal for flattening and loss of rebound
- Use a small trial order before placing a bulk replenishment
FAQ
Is compression set the same as wear?
No. Wear is usually caused by motion and surface contact. Compression set is the loss of elastic recovery after long compression.
Can compression set be reversed?
Not in a reliable way. Once the seal has permanently flattened, replacement is usually the safer choice.
Does a harder O-ring always reduce compression set?
Not always. Hardness helps in some grooves, but the compound, temperature, and service time matter too.
What should I check first?
Start with temperature, fluid, groove size, and material. Then confirm whether the seal is under constant load or repeated cycling.
Final Tip
Compression set is really a recovery problem. If the seal cannot spring back after being squeezed, the groove eventually loses sealing force. Choose the material and groove around the real service condition, not just the size.
