Many O-ring leaks start during installation. A seal can be the right size and the right material and still fail if it is pinched, twisted, cut, dragged over a sharp edge, or assembled dry.
Before you install a replacement, confirm the size with the how to measure an O-ring guide and the O-ring size chart. If the old seal failed after assembly, the O-ring failure causes article can help separate installation damage from material or groove problems.

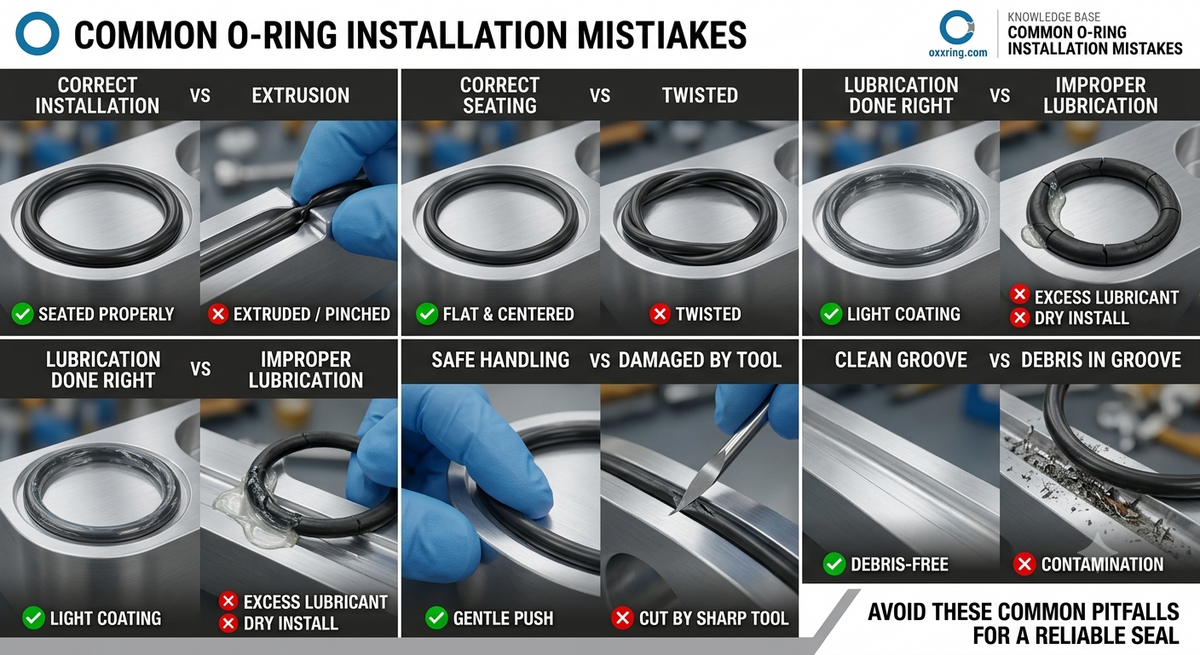

Common Installation Mistakes
Most mistakes leave a visible clue. A pinch mark usually means the ring caught on a groove edge. A twist can show up as a spiral line. A cut or nick often comes from burrs, threads, or sharp corners. Overstretching can make the ring harder to seat and easier to damage.
| Mistake | What It Does | Better Practice |
|---|---|---|
| Pinched seal | Traps rubber at the edge of the groove | Use a chamfer and guide the ring evenly |
| Twisted seal | Creates spiral stress and uneven squeeze | Roll the seal into place without rolling one side first |
| Cut or nicked seal | Damages the surface before the seal seats | Deburr edges and cover sharp threads |
| Dry installation | Raises friction and makes the ring stick or roll | Use a compatible light lubricant when allowed |
| Wrong size | Too much stretch or too little squeeze | Confirm ID and cross section before ordering |
| Dirty groove | Creates high spots that cut or pinch the seal | Clean the groove and check the lead-in edge |
Start With the Right Size and Material
An O-ring that is too small may stretch and thin out. One that is too large may roll or pinch during installation. If the application already has a known material, use that as the starting point. For oil and grease service, NBR O-rings are a common starting point. For other environments, use the material guide and the O-ring hardness guide before ordering.
For repeat repair work, record inside diameter, cross section, groove width, groove depth, and material. Teams that handle many common sizes can use the O-ring kits for maintenance teams article to keep replacement stock organized.
Prepare the Groove
Clean the groove, remove burrs, and check the chamfer. Sharp edges cut rubber fast. A smooth lead-in helps the seal roll into position rather than scrape across metal. If the hardware is part of a moving joint, the static vs dynamic O-rings guide is useful for judging how much lubrication and wear resistance you need.
If the groove or bore looks rough, do not force the seal through it. Fix the edge first. That is usually faster than replacing the same damaged O-ring twice.
Use Lubrication Carefully
A compatible lubricant can reduce friction, make assembly easier, and help prevent twist. But not every lubricant fits every fluid or seal material. Use only what the application allows, and never assume grease is always harmless.
When you need to replenish common maintenance stock, a bulk quote can keep the size and material list consistent across repeat orders.
Install the Seal Without Forcing It
- Stretch only as much as needed to pass over the hardware
- Roll the seal into place instead of dragging it dry
- Keep the ring evenly supported while it seats
- Avoid twisting the cross section
- Stop if you feel a snag and inspect the edge
Inspect After Assembly
After installation, check that the seal sits flat and even, with no spiral twist, pinch mark, or cut line. If the joint will be left in storage before use, the guide on rubber O-ring storage explains how to keep spare seals from aging or flattening before service.
If a new seal leaks immediately after installation, do not just replace the same part again. Confirm the groove, surface finish, pressure, and movement. If the failure looks like compression loss rather than installation damage, review compression set and O-ring failure causes together.
FAQ
Should O-rings be lubricated before installation?
Usually yes when the application allows it. Use a compatible lubricant and a thin film, not a heavy coating.
Can I reuse an O-ring that got pinched?
No. If the seal has been pinched or cut, replacement is the safer choice.
What is the biggest installation mistake?
Forcing the seal over a sharp edge without enough guidance, lubrication, or groove preparation.
Do all seals need the same installation method?
No. Static and dynamic applications can need different surface finish, hardness, and lubrication choices.
Final Tip
Good installation is usually quiet and uneventful. If the seal fights you, stop and fix the edge, the size, or the lubrication before you finish assembly.
