Measuring an O-ring correctly is the first step to choosing the right replacement seal. Whether you are repairing equipment, matching an old seal, or ordering small packs for maintenance work, the most important dimensions to understand are ID, OD, and CS.
ID means inside diameter. OD means outside diameter. CS means cross section, which is the thickness of the O-ring body.
For most replacement O-ring orders, the two most important measurements are the inside diameter and the cross section. Once you know these two dimensions, you can compare your measurement with an O-ring size chart and choose the closest matching size.

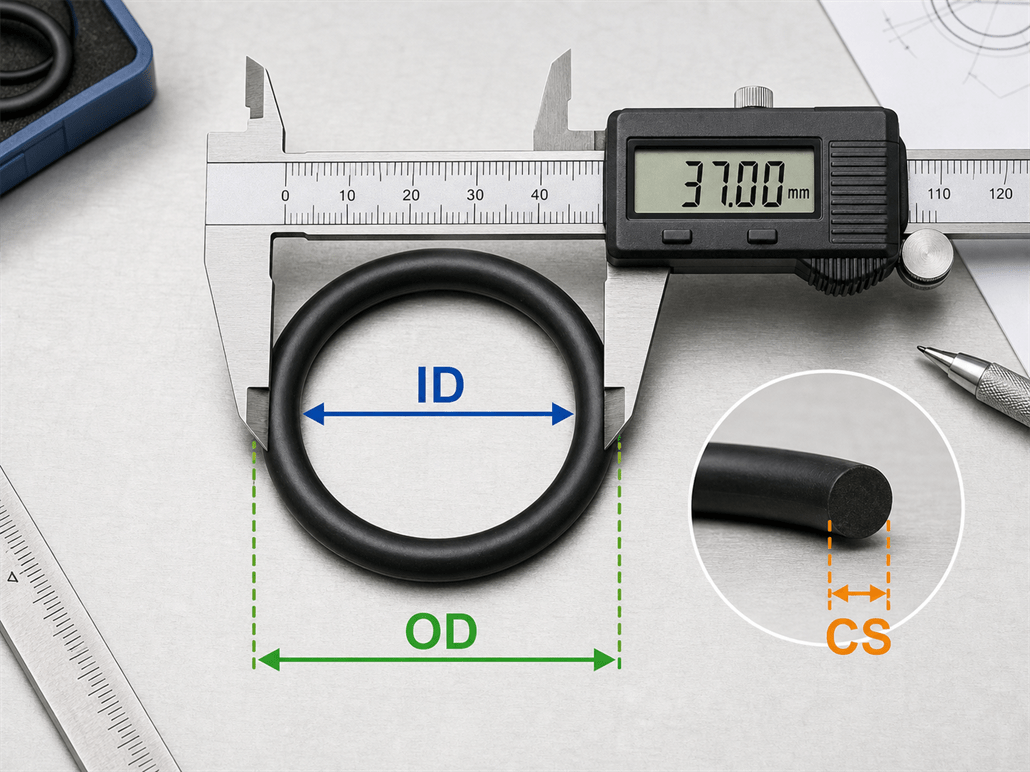

What Do ID, OD, and CS Mean?
An O-ring is usually described by two main dimensions: inside diameter and cross section.
ID, or inside diameter, is the distance across the inner opening of the O-ring.
OD, or outside diameter, is the full outside width of the O-ring from one outer edge to the opposite outer edge.
CS, or cross section, is the thickness of the rubber ring. It is the diameter of the round body of the O-ring.
The basic formula is:
OD = ID + (2 x CS)
For example, if an O-ring has a 22.50 mm inside diameter and a 2.50 mm cross section, the outside diameter is:
22.50 + (2 x 2.50) = 27.50 mm
So this O-ring can be described as 22.50 x 2.50 mm, using ID x CS.
Why Accurate O-Ring Measurement Matters
A small size difference can affect sealing performance. If the O-ring is too small, it may stretch too much or fail to seat properly. If it is too large, it may bunch up, roll, or prevent the assembly from closing correctly.
Incorrect measurement may lead to:
- Leaks
- Poor compression
- Premature wear
- Difficult installation
- Seal extrusion
- Equipment downtime
- Reordering the wrong size
This is why it is better to measure carefully before ordering replacement O-rings.
Tools You Need to Measure an O-Ring
The best tool for measuring an O-ring is a digital caliper. A ruler can be used for rough checking, but it is usually not accurate enough for small O-rings or tight sealing applications.
Recommended tools include:
- Digital caliper
- Clean flat surface
- Good lighting
- O-ring size chart
- Notebook or phone for recording measurements
Before measuring, make sure the O-ring is clean and not stretched. If it is covered in oil, dust, or debris, clean it gently and let it return to its natural shape.
Step 1: Measure the Inside Diameter
Place the O-ring on a flat surface. Use the inside jaws of the caliper to measure the inner opening from one side to the other.
This measurement is the inside diameter, or ID.
Do not pull the O-ring while measuring. Rubber can stretch easily, and even a small amount of stretching can change the reading.
If the O-ring is large and soft, try to keep it in a natural round shape. If it is deformed, measure in more than one direction and compare the results.
Step 2: Measure the Cross Section
Next, measure the thickness of the O-ring body. This is the cross section, or CS.
Use the caliper jaws to gently close around the rubber section. Do not squeeze too hard. Rubber can compress, and pressing too firmly may give you a smaller reading than the actual size.
If the O-ring is old or worn, measure the cross section in several places. Look for flat spots, swelling, cracks, or uneven thickness.
Step 3: Calculate the Outside Diameter
Once you know the ID and CS, you can calculate the OD.
Use this formula:
OD = ID + (2 x CS)
Example:
| Dimension | Measurement |
|---|---|
| Inside Diameter | 22.50 mm |
| Cross Section | 2.50 mm |
| Outside Diameter | 27.50 mm |
This size would usually be searched as:
22.50 x 2.50 mm O-ring
You can also measure the outside diameter directly with a caliper, but ID and CS are normally more useful when matching replacement O-rings.
Should You Measure a New or Used O-Ring?
If possible, measure a new or unused O-ring. A used O-ring may no longer match its original size.
Used O-rings can be affected by:
- Heat
- Oil
- Fuel
- Water
- Steam
- Chemicals
- Pressure
- Compression set
- Long-term stretching
If you only have a used O-ring, inspect it carefully before trusting the measurement. A swollen or flattened O-ring may not give an accurate size.
When the old O-ring looks damaged, it is useful to also check the groove dimensions or compare the measurement with a standard O-ring size chart.
Metric O-Rings vs AS568 O-Rings
O-rings are commonly listed in metric sizes or AS568 dash sizes.
Metric O-rings are usually shown as:
ID x CS
For example:
22.50 x 2.50 mm
AS568 O-rings use standard dash numbers, such as -006, -010, -111, or -214. These sizes are common in the United States and are widely used in industrial, automotive, hydraulic, pneumatic, and maintenance applications.
If you do not know whether your O-ring is metric or AS568, measure the ID and CS first. Then compare the result with a metric O-ring size chart and an AS568 O-ring size chart.
Common O-Ring Measurement Mistakes
Many wrong orders happen because the O-ring was measured incorrectly. Avoid these common mistakes:
Measuring Only the Outside Diameter
OD alone is not enough. You also need the cross section, and in most cases, the inside diameter is more useful for replacement matching.
Stretching the O-Ring While Measuring
Do not pull the O-ring with your fingers or caliper. Stretching makes the inside diameter look larger than it really is.
Squeezing the Cross Section Too Hard
When measuring CS, close the caliper gently. Pressing too hard can compress the rubber and create an inaccurate measurement.
Measuring a Damaged O-Ring Without Checking Condition
Old O-rings may be swollen, flattened, cracked, or permanently stretched. If the O-ring is damaged, compare your result with a size chart before ordering.
Ignoring Material and Hardness
Size is important, but it is not the only factor. The wrong material or hardness can also cause seal failure.
After Measuring: Choose the Right Material
Once you know the size, you need to choose the right material for the application.
NBR / Nitrile O-Rings
NBR, also known as nitrile, is a common choice for oil, grease, hydraulic fluid, and general industrial sealing. It is often used in repair, maintenance, automotive, and machinery applications. You can browse NBR O-rings when the application involves oil-resistant general sealing.
FKM O-Rings
FKM O-rings are often selected for higher heat, fuel, and chemical resistance. They are commonly used when standard rubber materials may not perform well in harsher environments.
EPDM O-Rings
EPDM O-rings are commonly used for water, steam, outdoor exposure, weather resistance, and some cooling system applications. EPDM is usually not the best choice for petroleum oils or fuels. For water and outdoor sealing needs, see EPDM O-rings.
Silicone O-Rings
Silicone O-rings are useful when flexibility and temperature range are important. They are often used in applications where softness and low-temperature flexibility matter.

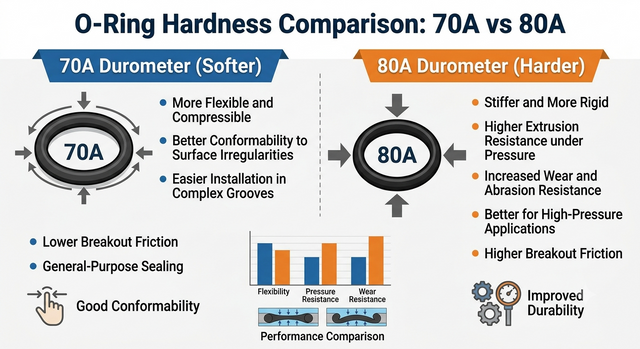

What Hardness Should You Choose?
O-ring hardness is usually measured in Shore A durometer. Common options include 70A and 80A.
A 70A O-ring is a common general-purpose hardness. It is flexible and suitable for many static sealing applications.
An 80A O-ring is harder and may provide better resistance to extrusion in some applications.
The right hardness depends on the size, pressure, groove design, material, and operating conditions.
How to Order the Right Replacement O-Ring
Before ordering, collect these details:
- Inside diameter
- Cross section
- Material
- Hardness
- Quantity
- Application environment
- Static or dynamic use
- Temperature exposure
- Contact with oil, fuel, water, steam, or chemicals
For repair and maintenance, small packs are useful because they allow you to test the fit before buying larger quantities. For production or repeat maintenance needs, a bulk quote may be more efficient.
Quick O-Ring Measurement Checklist
- Measure the inside diameter.
- Measure the cross section.
- Calculate or confirm the outside diameter.
- Check whether the size is metric or AS568.
- Inspect the old O-ring for wear or swelling.
- Choose the right material.
- Choose the right hardness.
- Confirm the quantity or pack size.
FAQ
What is the most important O-ring measurement?
The inside diameter and cross section are usually the most important measurements for choosing a replacement O-ring.
What does CS mean in O-ring size?
CS means cross section. It is the thickness of the round rubber body of the O-ring.
How do I calculate O-ring OD?
Use this formula: OD = ID + (2 x CS).
Can I measure an O-ring with a ruler?
A ruler can be used for rough checking, but a digital caliper is better for accurate measurement.
Can I replace an O-ring with a slightly different size?
Sometimes a close size may work, but it depends on the groove, compression, pressure, and application. For reliable sealing, match the original size as closely as possible.
Are all black O-rings made from NBR?
No. Color alone does not confirm material. Black O-rings can be NBR, FKM, EPDM, or other compounds.
Final Tip
To choose the right replacement O-ring, start with accurate measurement. Measure the inside diameter and cross section, compare the result with a reliable size chart, and then choose the correct material and hardness for your application.
A few minutes of careful measurement can help prevent leaks, downtime, and incorrect orders.
