Static O-rings and dynamic O-rings can look the same at first glance, but the job they do is different. A static seal sits still between two parts. A dynamic seal moves against a shaft, piston, or rod, so wear and friction matter much more.
The safest starting point is to measure the old seal and the groove, then compare the result with the O-ring size chart and the how to measure an O-ring guide. From there, decide whether the application is static, dynamic, or a mix of both.
What Static O-Rings Do
A static O-ring seals between parts that do not move relative to each other. Typical examples include covers, flanges, housings, end caps, and stationary machine joints. The seal works by compression in the groove, and once installed it does not have to handle sliding or rolling motion.
Because there is no ongoing motion, static seals are usually easier to select. The main checks are size, groove fit, material, and compression. For many oil-related jobs, NBR O-rings are a common starting point, but the fluid and temperature still decide the final choice.
What Dynamic O-Rings Do
A dynamic O-ring seals while one part moves against another. That motion may be reciprocating, like a piston or rod, or slower and rotational in some equipment. The seal still depends on compression, but now the surface finish, lubrication, hardness, and wear resistance become more important.
Dynamic sealing is less forgiving than static sealing. If the groove is wrong, the seal can wear quickly, roll, stick, or leak. That is why the material and hardness should be checked carefully with the material guide and the O-ring hardness guide before placing a larger order.

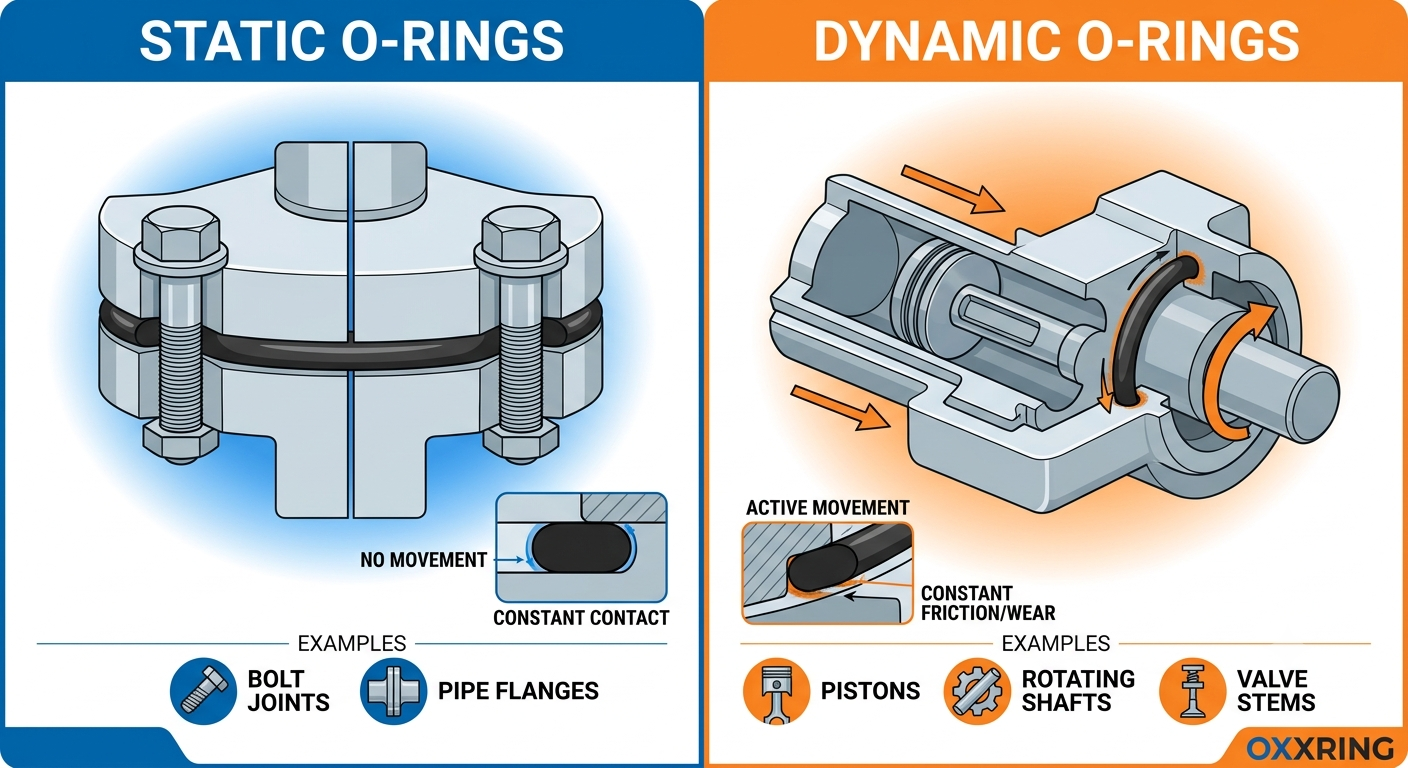

Static vs Dynamic O-Rings
| Factor | Static O-Ring | Dynamic O-Ring |
|---|---|---|
| Motion | No relative movement | Sliding, reciprocating, or rotating motion |
| Main risk | Poor compression or wrong size | Wear, friction, extrusion, sticking |
| Selection focus | Groove fit and material compatibility | Groove fit, lubrication, hardness, surface finish |
| Typical job | Flanges, covers, housings | Rod seals, piston seals, moving shafts |
When to Use Static O-Rings
Use a static O-ring when the joint only needs to hold pressure or block fluid without movement. These seals are common in equipment covers, valve bodies, fittings, and other stationary interfaces. In these jobs, a good fit and correct compression are usually more important than ultra-low friction.
When to Use Dynamic O-Rings
Use a dynamic O-ring when the seal must survive motion across the sealing surface. Piston seals and shaft seals are common examples. Here, friction and wear are part of the design, so the seal must be matched to the motion, speed, fluid, and groove clearance.
- Check whether the movement is reciprocating or rotating
- Confirm lubrication and surface finish requirements
- Do not assume a static seal will survive dynamic service
- Test a small quantity before bulk ordering replacement parts
Material and Hardness Still Matter
Choosing between static and dynamic use does not finish the selection. The material must match the fluid and temperature, and hardness must match the groove and pressure. For oil and grease service, NBR O-rings are often a practical starting point, but water exposure, heat, and chemical exposure can lead to different choices.
Use the material guide and the O-ring hardness guide when the seal shape is clear but the compound or durometer is still uncertain.
Groove and Fit Checks
Static seals rely on compression. Dynamic seals rely on compression plus controlled motion. In both cases, measure inside diameter, cross section, and groove dimensions before ordering. If the seal is already worn, do not trust the old part alone. Recheck the hardware and the sealing surface first.
If you are planning repeat replacement work, the O-ring kits for maintenance teams article is a good reference for organizing common sizes. For recurring orders, send the size, material, and quantity in a bulk quote so the right parts can be matched faster.
Buyer Checklist
- Confirm whether the application is static or dynamic
- Measure the seal and groove before ordering
- Check motion speed, pressure, and temperature
- Confirm material compatibility with the working fluid
- Review hardness if the seal sees friction or extrusion risk
- For maintenance stock, compare with your current spare kit before buying more
FAQ
Can I use a static O-ring in a dynamic application?
Usually not without checking the groove, friction, and wear conditions. A static seal may wear too fast when motion is added.
Why are dynamic O-rings harder to choose?
Because motion adds friction, wear, and surface finish requirements. The seal has to work harder than a static part.
What should I measure first?
Start with inside diameter, cross section, and groove dimensions. Then confirm fluid, temperature, and motion type.
When should I ask for help?
If the seal is used in repeated maintenance or mixed equipment, a bulk quote is the fastest way to request the right size and material match.
Final Tip
Static and dynamic O-rings are both groove seals, but the job they do is not the same. Static seals want compression. Dynamic seals want compression plus controlled motion handling. Match the application first, then confirm size, material, and hardness.
