O-ring failure is usually blamed on the seal, but the real cause can be size, groove condition, material, temperature, motion, installation damage, or storage age. Replacing the same part without checking the failure pattern may only repeat the leak.
Before ordering replacement O-rings, measure the old seal and groove carefully. The how to measure an O-ring guide and the O-ring size chart are useful starting points when the removed seal is damaged, flattened, or swollen.

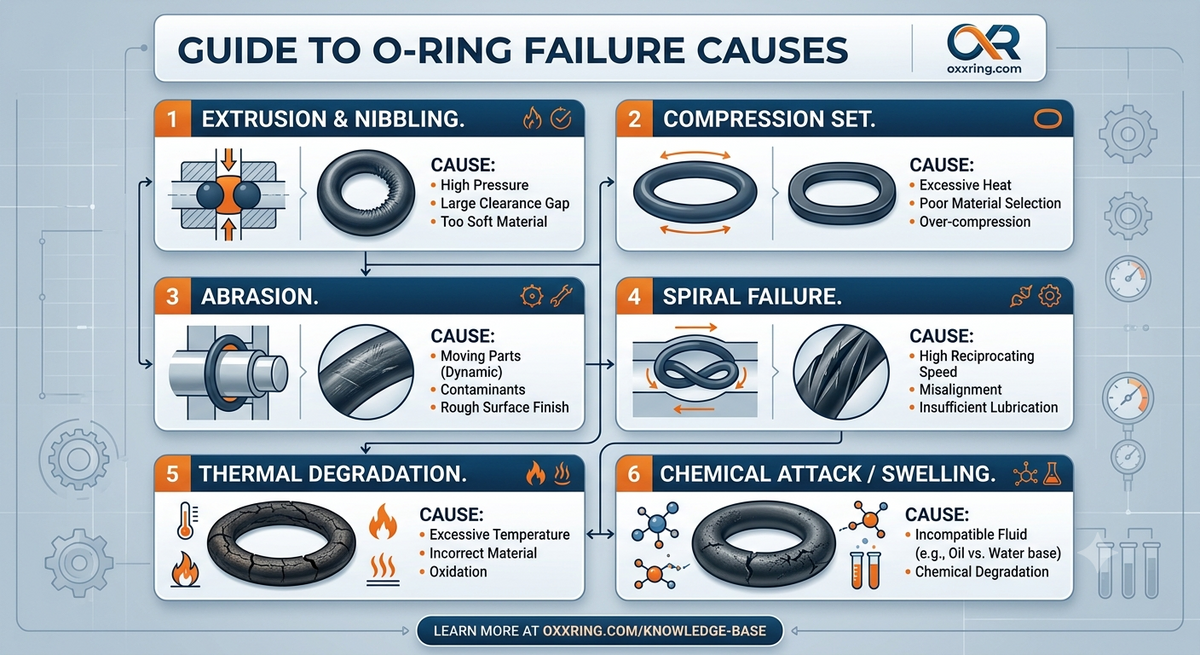

Common O-Ring Failure Causes
Most failures leave clues. A cracked seal points to aging, ozone, heat, stretching, or chemical attack. A swollen seal often points to material incompatibility. A flat seal may point to compression set, high heat, or too much squeeze. A worn or torn seal may point to movement, rough surfaces, poor lubrication, or installation damage.
| Failure Sign | Likely Cause | Buyer Check |
|---|---|---|
| Leak after assembly | Wrong size, damaged groove, low squeeze | Measure ID, cross section, and groove |
| Cracks on the surface | Heat, ozone, aging, stretching, wrong compound | Review service and storage conditions |
| Swelling or softening | Fluid does not match the rubber material | Check the material |
| Flat cross section | Compression set, heat, or long-term load | Confirm temperature and groove squeeze |
| Abrasion or tearing | Motion, sharp edges, poor lubrication | Check whether the seal is static or dynamic |
Start With Size and Groove Fit
An O-ring can fail even when the material is correct if the size or groove is wrong. Too little squeeze may allow leakage. Too much squeeze can raise friction, damage the seal during assembly, or speed up compression set. If the old seal is deformed, do not copy its current shape blindly.
For repeat repair work, record inside diameter, cross section, groove width, groove depth, and material. Teams that handle many common sizes can use the O-ring kits for maintenance teams article to keep replacement stock organized.
Check Material Compatibility
Material mismatch is one of the fastest ways to damage an O-ring. Oil, grease, fuel, coolant, water, steam, cleaning chemicals, and outdoor exposure can affect rubber compounds differently. A seal that swells, softens, hardens, or cracks after contact with a fluid should be treated as a compatibility warning.
For oil-related work, NBR O-rings are often a practical starting point. But fluid type, temperature, and exposure time still matter, so material should be selected from the actual service condition rather than only the color or old part number.
Look at Hardness and Squeeze
Hardness affects how the seal fits the groove and responds to pressure. A softer O-ring may conform more easily but can extrude or wear in some conditions. A harder O-ring can resist deformation better but may be harder to install or seal against rough surfaces.
The O-ring hardness guide is a useful reference when choosing between common durometers such as 70A and 80A. If the seal looks crushed, flattened, or pinched, hardness and groove squeeze both deserve attention.
Static and Dynamic Applications Fail Differently
A static seal usually fails from poor squeeze, surface damage, material aging, or compression set. A dynamic seal may fail from friction, abrasion, shaft movement, pressure cycling, poor lubrication, or extrusion. The static vs dynamic O-rings article explains this difference in more detail.
If the failure pattern shows rubbing, scoring, spiral twist, or torn edges, treat the application as a motion problem first. Replacing the same O-ring material may not solve the issue if the surface finish, speed, or lubrication is wrong.
Do Not Ignore Storage and Age
Spare seals can fail before installation if they were stored near heat, UV light, ozone, moisture, or poor packaging. The guide on rubber O-ring storage explains how to protect unused inventory from cracking, hardening, and shape loss.
For critical repairs, inspect old stock before use. A seal that feels hard, sticky, cracked, flattened, or no longer elastic should be replaced rather than installed.
Quick Failure Inspection Checklist
- Measure the seal and groove before ordering replacements
- Check whether the seal is cracked, swollen, worn, cut, or flattened
- Confirm the fluid, temperature, pressure, and movement type
- Compare the material against the service environment
- Check hardness if the seal is pinched, extruded, or difficult to install
- Inspect the groove, shaft, bore, and sharp edges for damage
- Replace aged or poorly stored inventory before a critical repair
Buying Replacement O-Rings
When you request replacement O-rings, send the size, material, hardness, quantity, application type, fluid, and temperature. If possible, include a photo of the failed seal and the groove. That information helps narrow down whether the problem is the seal itself or the application around it.
For recurring maintenance purchases, a bulk quote can help standardize the sizes and materials your team uses most often.
FAQ
Why do O-rings leak after replacement?
Common reasons include the wrong size, damaged groove, incorrect material, poor installation, low squeeze, or using an aged replacement seal.
What does a swollen O-ring mean?
Swelling usually suggests the rubber material is not compatible with the fluid or chemical exposure.
What does a flattened O-ring mean?
A flattened cross section often points to compression set, high heat, too much squeeze, or long service time under load.
Can a cracked O-ring still seal?
It may seal briefly in a low-risk situation, but cracks usually mean the seal should be replaced and the cause should be checked.
Final Tip
Do not treat O-ring failure as a random part problem. Read the failure pattern first, then choose the replacement size, material, hardness, and storage method around the real cause.
