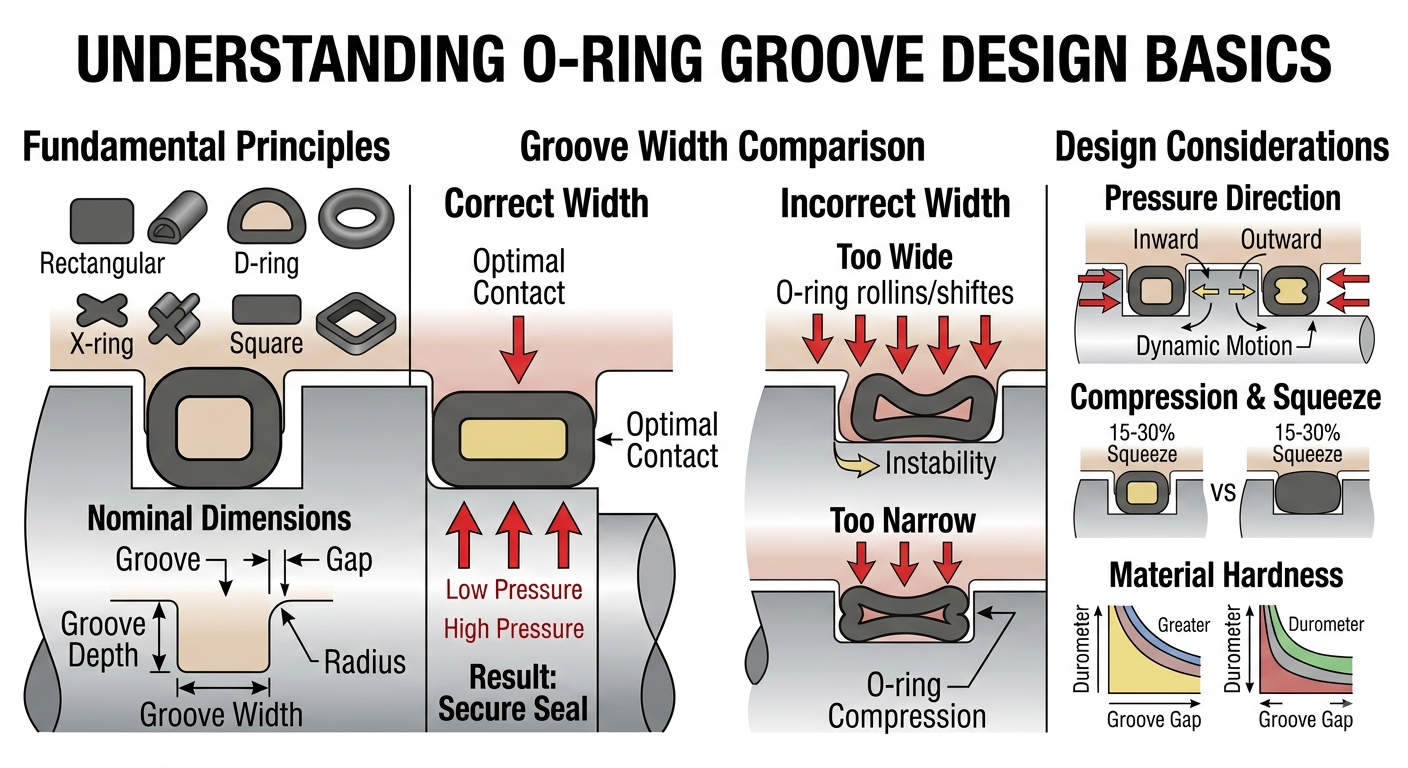

O-ring groove design determines how the seal is compressed, supported, and allowed to move. A correctly selected O-ring can still leak or fail early when the gland is too deep, too shallow, too narrow, or paired with excessive hardware clearance.
Before evaluating a groove, confirm the actual seal dimensions with how to measure an O-ring and compare the size with the O-ring size chart. Nominal dash size alone does not account for manufacturing tolerances, material swelling, or the dimensions of worn hardware.
The Four Main Groove Design Checks
| Design factor | What it controls | Common risk |
|---|---|---|
| Squeeze | Initial sealing contact | Too little may leak; too much raises stress and friction |
| Stretch | How the O-ring fits the diameter | Excess stretch thins the cross section |
| Groove fill | Free volume for deformation and swelling | Overfill leaves no room for thermal or fluid expansion |
| Clearance | Support on the low-pressure side | Large gaps increase extrusion risk |
What Is O-Ring Squeeze?
Squeeze is the reduction in O-ring cross-section height after assembly. It creates contact force against the sealing surfaces. If the groove is too deep, contact may be weak. If it is too shallow, the seal may be over-compressed, difficult to assemble, or prone to heat and wear.
The correct range depends on whether the application is static or moving. Review static vs dynamic O-rings before applying a single percentage to every gland. Dynamic seals generally need tighter control of friction, lubrication, surface finish, and heat.
How Stretch Changes the Cross Section
Stretch helps retain an O-ring on a piston or plug, but stretching the inside diameter also reduces cross-section thickness. That change affects squeeze and groove fill. Calculate the assembled geometry rather than assuming the uninstalled cross section remains unchanged.
If a replacement seal must be stretched heavily to reach the groove, recheck its ID and standard. The comparison of 70A and 80A O-ring hardness can help with material behavior, but a harder compound is not a substitute for the correct dimensions.
Why Groove Fill Needs Free Space
The O-ring occupies only part of the gland volume. Remaining space allows the rubber to deform under squeeze and expand with temperature or fluid absorption. A groove filled too tightly can trap the seal, increase friction, or force rubber into the clearance gap.
Use the material guide and chemical compatibility guide to consider swelling before finalizing gland volume. For many oil-related applications, NBR O-rings are a common starting point, but the actual oil, additives, temperature, and exposure time still need verification.
Clearance and Extrusion Risk
Pressure pushes the O-ring toward the low-pressure side of the gland. If the hardware gap is too large, rubber can enter the gap and develop nibbled or torn edges. Higher pressure, softer material, elevated temperature, and pressure cycling all increase this risk.
When extrusion is visible, review the O-ring failure causes guide and measure the hardware instead of repeatedly installing the same seal. Reducing clearance, changing hardness, or adding a suitable backup ring may be required.
Static and Dynamic Grooves Are Different
A static face seal, static radial seal, reciprocating piston, and rotating shaft do not use identical gland assumptions. Direction of pressure, motion, lubricant retention, surface finish, and thermal expansion change the design. Confirm which surfaces move and where pressure acts before selecting dimensions.
Good assembly practice still matters after the gland is correct. The guide to O-ring installation mistakes covers pinching, twisting, sharp edges, and other damage that can make a sound groove appear defective.
Buyer Checklist Before Ordering
- Record groove diameter, width, depth, and hardware clearance
- Confirm whether the seal is static, reciprocating, or rotating
- Check minimum, normal, and peak pressure
- Identify fluid, temperature range, and expected swelling
- Calculate assembled squeeze, stretch, and groove fill
- Include dimensional tolerances and wear in the worst-case check
- Inspect lead-in chamfers, edges, and surface finish
FAQ
Can I use one groove design for every O-ring material?
No. Materials differ in hardness, swelling, thermal behavior, friction, and compression set. Validate the gland for the selected compound and service conditions.
Does a harder O-ring solve a loose groove?
Not reliably. Hardness may improve extrusion resistance, but it can also change sealing contact and assembly force. Correct the geometry first.
Why does an O-ring leak only after heating?
Temperature can change rubber properties, fluid viscosity, hardware dimensions, and gland fill. It can also accelerate compression set, reducing sealing force after long exposure.
What information should I send for a custom seal review?
Provide the O-ring size, material, hardness, gland dimensions, pressure direction, fluid, temperature, motion, surface finish, and expected service life. For production quantities, request a bulk quote with those details.
Final Design Rule
Evaluate the complete tolerance stack. Reliable O-ring groove design comes from balancing squeeze, stretch, fill, and clearance under the real pressure, temperature, material, and motion conditions.
