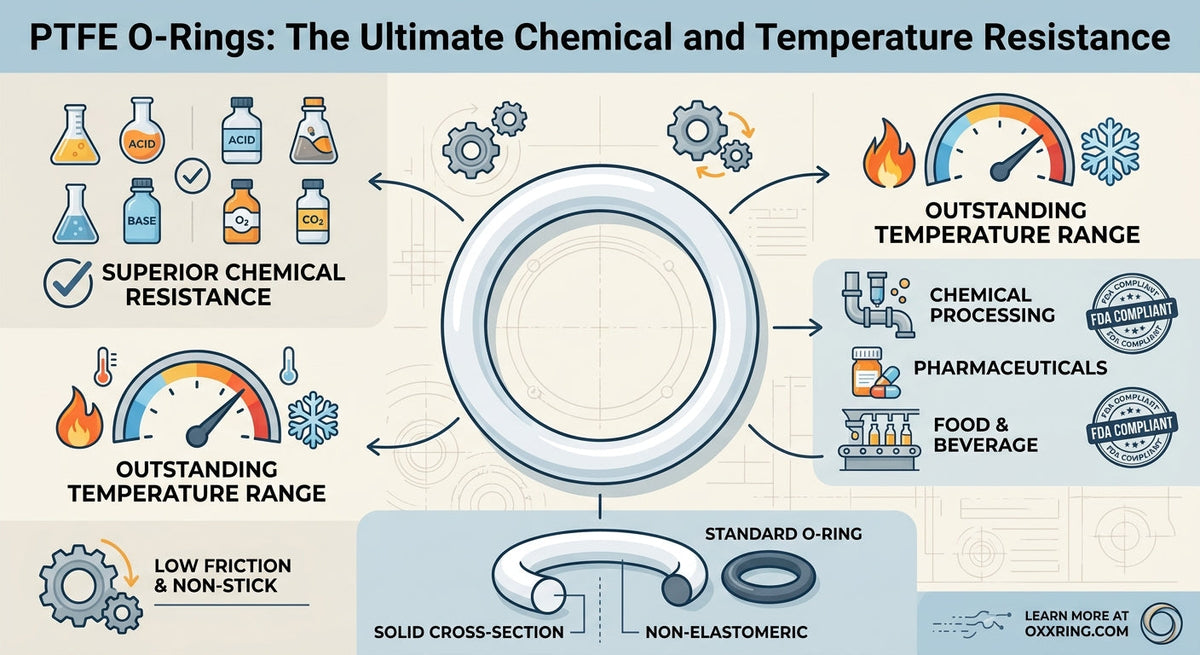

PTFE O-rings, often searched as Teflon O-rings, are plastic sealing rings used when chemical resistance, low friction, cleanliness, or very low surface energy matters more than rubber-like elasticity. PTFE can handle many aggressive fluids that would swell or degrade common elastomers, but it seals differently from NBR, FKM, EPDM, or silicone.
The most important buyer point is simple: PTFE is not a springy rubber. It has low elasticity and can cold flow under load, so groove support, compression, surface finish, and installation method need more attention than they would for a standard elastomer O-ring.
What Is a PTFE O-Ring?
A PTFE O-ring is a ring-shaped seal made from polytetrafluoroethylene. Teflon is a well-known brand name associated with PTFE, while PTFE is the material family buyers usually specify in technical drawings and purchasing documents.
PTFE is valued for broad chemical resistance, low friction, non-stick behavior, low moisture absorption, and clean service compatibility. It is often considered in chemical processing, laboratory equipment, food and beverage systems, coating equipment, instrumentation, and applications where contamination or sticking must be reduced.
PTFE O-Rings vs. Rubber O-Rings
| Factor | PTFE O-ring | Rubber O-ring |
|---|---|---|
| Elastic recovery | Low; needs careful groove support | High; compresses and rebounds more easily |
| Chemical resistance | Excellent in many aggressive fluids | Depends strongly on material family and compound |
| Friction | Very low | Varies by elastomer and lubricant |
| Conformability | Limited on rough or uneven surfaces | Usually better at following minor surface variation |
| Cold flow | Important design concern | Usually less dominant than compression set or swelling |
Use the O-ring material guide to compare PTFE with elastomers, then check the exact fluid exposure with a chemical compatibility guide before ordering.
When PTFE O-Rings Make Sense
- Chemical systems where many rubber materials swell, crack, or lose strength
- Low-friction sealing locations where sticking or drag is a concern
- Clean equipment where low contamination and low absorption are important
- Static seals in valves, fittings, instruments, and process equipment
- Applications where the drawing specifically calls for PTFE rather than an elastomer
PTFE is less forgiving when the hardware is scratched, poorly supported, or designed around rubber rebound. For dynamic motion, pressure cycling, or uneven flanges, the design should be reviewed carefully instead of assuming a material upgrade will solve the problem.
Why Low Elasticity Changes the Design
Rubber O-rings store elastic energy when compressed. That recovery helps them maintain contact as hardware moves slightly or pressure changes. PTFE has much less recovery. If the groove does not support the seal, the ring may not keep enough contact stress after installation, temperature cycling, or long-term loading.
This is why PTFE O-rings often need tighter control of gland dimensions, smoother surfaces, and realistic testing. Review the O-ring groove design basics before replacing a rubber seal with PTFE.
Design Checks Before Buying
- Confirm the application is static, slow-moving, or otherwise suitable for PTFE.
- Check groove depth, width, squeeze, fill, and extrusion clearance.
- Verify surface finish because PTFE may not conform to rough scratches as easily as rubber.
- Check temperature, pressure, and chemical exposure together.
- Decide whether virgin PTFE, filled PTFE, encapsulated O-rings, or an elastomer would be better.
- Test samples in the actual hardware before committing to production quantities.
The O-ring surface finish guide is especially important for PTFE because sealing contact depends on the hardware surface as much as the material.
Common Failure Risks
- Assuming PTFE will rebound like rubber after compression
- Using a rough or scratched groove that prevents stable contact
- Allowing cold flow in an unsupported groove
- Installing a stiff PTFE ring over sharp edges without proper lead-in
- Choosing PTFE for a motion type that needs a more elastic sealing element
- Ignoring pressure direction, extrusion gaps, and assembly relaxation
If a removed seal shows leakage, extrusion, flattening, cutting, or chemical attack, compare the symptoms with the O-ring failure causes guide before switching materials.
PTFE, FKM, EPDM, NBR, or Silicone?
| Material | Often considered for | Main caution |
|---|---|---|
| PTFE | Aggressive chemicals, low friction, clean service | Low elasticity and cold flow |
| FKM | Fuel, oil, heat, and many chemicals | Not universal for every chemical |
| EPDM | Water, weather, ozone, and selected steam | Usually unsuitable for petroleum oils |
| NBR | General oil and grease service | Limited ozone and high-temperature aging resistance |
| Silicone | Temperature range and clean equipment needs | Lower tear and abrasion resistance in many grades |
Buyer Checklist
- Use PTFE when the service really needs chemical resistance, low friction, or cleanliness.
- Do not replace rubber with PTFE by size alone.
- Confirm gland dimensions, surface finish, pressure, and installation path.
- Ask whether virgin PTFE, filled PTFE, or an encapsulated seal is the better construction.
- Validate the seal in the actual assembly before larger orders.
Frequently Asked Questions
Are Teflon O-rings the same as PTFE O-rings?
Many buyers use Teflon O-rings to mean PTFE O-rings. PTFE is the material name commonly used for specification and purchasing.
Are PTFE O-rings flexible?
They are much less elastic than rubber O-rings. They can be installed in the right designs, but they do not stretch and rebound like elastomer seals.
Can PTFE replace FKM or EPDM?
Sometimes, but not by material name alone. Chemical exposure, temperature, pressure, groove support, and motion type all matter.
Final Selection Advice
Choose PTFE O-rings when the application needs chemical resistance or low friction and the hardware can support a low-elasticity seal. For custom sizes, uncertain material selection, or production quantities, send the operating details through the bulk quote request.
