O-Ring Squeeze: How Much Compression Does a Seal Need?
Learn how O-ring squeeze, groove depth, and compression rate affect contact pressure, leakage, friction, wear, and seal life.
O-ring squeeze is the controlled compression of the seal's cross section between the groove and the mating surface. This compression creates contact pressure, allowing the O-ring to block the leakage path before system pressure assists the seal.
Too little squeeze may leave an incomplete sealing contact. Too much squeeze can increase assembly force, friction, heat, wear, and permanent deformation. Buyers therefore need to consider O-ring size and groove depth together.
What Is O-Ring Squeeze?
O-ring squeeze is commonly expressed as the percentage reduction in cross-section height after installation. A simple calculation is: squeeze percentage = (free cross section - installed gland height) / free cross section x 100.
Confirm the actual cross section with the O-ring size guide and compare it with the available gland height.
What Happens When Squeeze Is Too Low?
- Contact pressure may be insufficient to close the leakage path.
- Manufacturing tolerances can create local areas with almost no compression.
- Low-pressure sealing may become inconsistent.
- Surface imperfections become harder for the elastomer to accommodate.
- Compression set or wear can remove the small amount of sealing force that remains.
Low squeeze is often linked to a groove that is too deep, a cross section that is too small, or accumulated dimensional tolerances.
What Happens When Squeeze Is Too High?
- Assembly force rises and the O-ring may be cut or pinched.
- Dynamic friction and heat can increase.
- The elastomer has less room to expand from heat or fluid exposure.
- Groove fill can become excessive.
- Permanent deformation and early wear may shorten seal life.
The O-ring groove design basics provides the wider context for gland depth, groove width, squeeze, and available volume.
How Groove Depth Controls Compression
| Condition | Seal contact | Likely concern |
|---|---|---|
| Groove too deep | Low squeeze | Leakage or weak low-pressure sealing |
| Balanced groove depth | Controlled contact pressure | Stable sealing with room for expansion |
| Groove too shallow | High squeeze | Friction, damage, heat, or overfill |

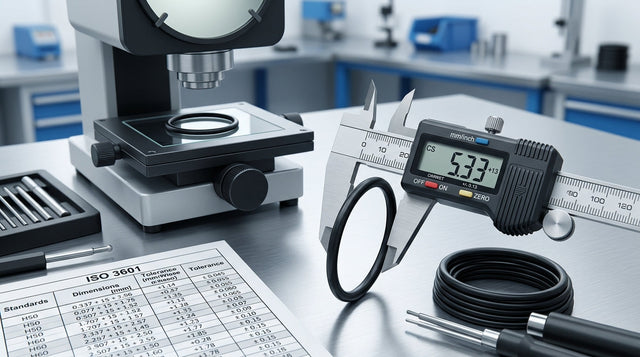

Small changes matter when cross sections are small. Review the O-ring tolerances guide before treating nominal dimensions as exact values.
Static vs Dynamic Squeeze Considerations
Static joints can often use enough compression to maintain dependable contact because the surfaces do not continuously move across the seal. Dynamic applications need tighter control because added squeeze also increases friction, wear, and heat.
Use the static vs dynamic O-rings guide to identify which design factors deserve priority in the application.
Material and Hardness Also Matter
A softer compound generally deforms more easily, while a harder compound may require more force to achieve the same physical compression. Hardness should not be used to correct an incorrect groove, but it affects assembly, extrusion resistance, and contact behavior.
Compare common choices in the O-ring hardness 70A vs 80A guide before changing durometer.
How Buyers Should Check O-Ring Squeeze
- Confirm the free O-ring cross section.
- Measure the installed gland height or groove depth.
- Calculate the nominal squeeze percentage.
- Include O-ring and hardware tolerances.
- Check groove fill and room for thermal or fluid expansion.
- Separate static requirements from dynamic friction limits.
- Validate samples under actual pressure, temperature, media, and motion.
Common Buyer Mistakes
- Selecting an O-ring by inside diameter alone.
- Assuming deeper compression always improves sealing.
- Ignoring tolerance stack-up between the groove and seal.
- Changing hardness without checking gland dimensions.
- Using static squeeze assumptions in a reciprocating or rotary seal.
- Overlooking pressure gaps that may require extrusion control.
For high pressure or large clearances, review the O-ring extrusion and backup ring guide along with the squeeze calculation.
Frequently Asked Questions
Does more squeeze always create a better seal?
No. Additional compression may raise contact pressure, but excessive squeeze can cause assembly damage, friction, heat, overfill, and permanent deformation.
Can squeeze compensate for the wrong O-ring material?
No. Squeeze cannot correct poor fluid or temperature compatibility. Geometry and material must both suit the application.
Why does a correctly sized O-ring still leak?
The nominal size may be correct while the groove depth, tolerances, surface condition, pressure clearance, or installed squeeze is not. Compare symptoms with the O-ring failure causes guide.
Final Selection Advice
Evaluate O-ring cross section, groove depth, tolerance, hardness, material, pressure, and motion as one system. For replacements or production quantities, send the measured gland dimensions and operating conditions through the custom O-ring quote request.
