Square O-Rings: Practical Guide for O-Ring Buyers
Learn how square O-rings and square cut seals work, when to use them, and how to choose size, material, hardness, groove geometry, and installation details for static sealing.
Square O-rings are elastomer seals with a square or nearly square cross-section. They are used mainly in static sealing where a broad, stable contact area and a compact rectangular groove are more useful than the rolling behavior of a conventional round O-ring.
The right choice depends on the groove, squeeze, material, hardness, pressure, temperature, fluid, and installation method. A square profile is not automatically a drop-in replacement for a round O-ring.
What Is a Square O-Ring?
A square O-ring, also called a square cut seal in some catalogs, has four relatively flat sides joined by corners. Its geometry can create wider contact bands in a properly designed gland and can help resist twisting in static assemblies.
Some products described as square O-rings are molded seals; others are cut from cord or sheet. Confirm the manufacturing method, corner geometry, size tolerance, and material before comparing suppliers.
How Square O-Rings Seal
When the groove closes, the seal is compressed between the groove floor and mating surface. The upper and lower contact bands block the fluid path while the elastomer follows small hardware irregularities. The seal must be compressed enough to maintain contact without filling the groove or being damaged.
Pressure can increase contact on the low-pressure side, but excessive clearance can still allow extrusion. Correct geometry matters more than profile shape alone.

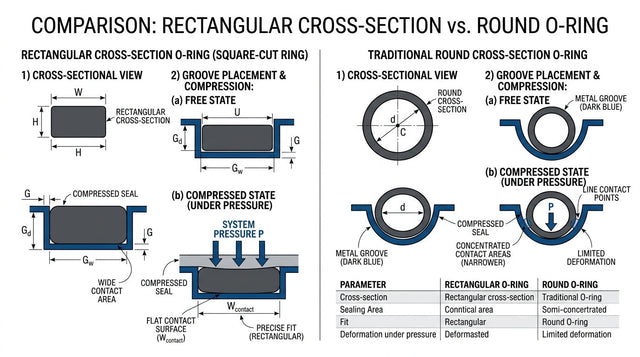

Square O-Rings vs. Round O-Rings
| Factor | Square O-ring | Round O-ring |
|---|---|---|
| Typical use | Static face, flange, and rectangular-groove sealing | Static and dynamic sealing across many standard glands |
| Contact shape | Broad bands when the gland matches the profile | Conforming curved contact band |
| Rotation risk | Often less prone to rolling in static service | Can twist or roll if the groove and installation are poor |
| Availability | May require profile-specific sourcing | Large standard size systems are widely available |
| Replacement | Must match profile and groove | Do not substitute by inside diameter alone |
For moving pistons, rods, or shafts, confirm whether a round O-ring or another dynamic seal profile is better suited to friction and wear.
Where Square O-Rings Are Used
- Static flanges and end-face seals
- Hydraulic and pneumatic manifolds with rectangular glands
- Valve covers, access plates, and housings
- Connectors and low-motion industrial assemblies
- Applications where anti-rotation behavior is useful
Application categories are not universal approvals. Match the compound to the actual fluid, temperature, pressure, and cleaning process.
Choosing a Size and Material
Start with the existing groove rather than selecting a seal by outside diameter alone. Measure groove width, depth, corner radius, mating gap, and the available squeeze. Use the O-ring size guide only after confirming which profile and standard the hardware accepts.
Common material decisions include NBR for many oil-related general applications, EPDM for selected water and weather service, FKM for some higher-temperature or chemical environments, and silicone for selected low-temperature or specialty uses. Confirm compatibility for the exact compound.
Hardness, Squeeze, and Groove Fit
A softer seal can conform to small irregularities but may be more vulnerable to extrusion or cutting. A harder seal can resist deformation but may need more controlled squeeze and better surface quality. Review the O-ring hardness guide with the groove design basics before changing hardness.
The groove should provide enough squeeze for contact while leaving room for thermal expansion and material swell. Avoid a filled gland that has no room for the seal to move under pressure or temperature.
Installation and Surface Checks
- Clean the groove and mating surface.
- Remove burrs and protect corners, threads, and ports.
- Use an approved lubricant when the process allows it.
- Seat the square seal without stretching, twisting, or pinching it.
- Check that corners are fully seated and not folded.
- Inspect the closing surface before applying pressure.
Surface damage can create leakage even when the profile and size are correct. Check the O-ring surface finish guide for scratches, pits, and machining direction.
Common Failure Causes
Typical problems include the wrong profile, insufficient or excessive squeeze, corner folding, extrusion through a clearance gap, chemical swelling, compression set, and scratches crossing the contact band. Compare the damage pattern with the O-ring failure causes guide before selecting a replacement.
Buyer Checklist
- Profile: molded square, cut square, or another seal design
- Inside dimensions, outside dimensions, and cross-section
- Groove width, depth, corners, squeeze, and fill
- Fluid, temperature, pressure, motion, and cleaning exposure
- Material, hardness, tolerance, and certification needs
- Quantity, packaging, shelf life, and replacement traceability
Frequently Asked Questions
Can I replace a round O-ring with a square O-ring?
Only after checking the groove and contact geometry. Matching the inside diameter alone is not enough.
Are square O-rings better for dynamic sealing?
They are commonly considered for static service. Dynamic suitability depends on friction, motion, lubrication, groove design, and the exact profile.
Are square cut seals the same as molded square O-rings?
Not necessarily. Manufacturing method, corner shape, joint condition, tolerance, and material may differ.
What is the most important sizing measurement?
Use the groove and mating hardware dimensions together with the seal profile. The cross-section and available squeeze are critical.
Final Selection Advice
Choose a square O-ring when its profile matches a stable static gland and provides a practical contact and installation advantage. For production quantities or profile review, send the groove and service details with a custom O-ring quote request.
