O-Ring Clearance Gap: How Extrusion Damage Starts
Learn how O-ring clearance gap, system pressure, hardness, temperature, and backup rings affect seal extrusion and edge damage.
An O-ring clearance gap is the space between mating hardware parts next to the seal gland. Under pressure, the O-ring moves toward this gap. If the gap is too large for the pressure, material, hardness, and temperature, the elastomer can be pushed into it and damaged.
This failure is called extrusion. It often appears as nibbling, peeling, ragged edges, or thin slices removed from the low-pressure side of the O-ring.
What Is an O-Ring Clearance Gap?
The clearance gap is not the O-ring groove itself. It is the hardware opening that pressure can push the seal toward, such as the space between a piston and bore or between a rod and gland.
The O-ring groove design basics helps place clearance, squeeze, groove width, and gland depth in the same design context.
How Extrusion Damage Starts
- System pressure loads one side of the O-ring.
- The seal shifts toward the low-pressure clearance gap.
- Elastomer begins to enter the unsupported opening.
- Pressure cycling or movement cuts the protruding material.
- Repeated damage creates nibbling, leakage, and eventual failure.
See the O-ring extrusion and backup ring guide for a broader explanation of extrusion control.
Factors That Increase Extrusion Risk
| Factor | Effect | Buyer concern |
|---|---|---|
| Larger clearance gap | Less hardware support | Material enters the gap more easily |
| Higher pressure | Greater force on the seal | Faster extrusion damage |
| Softer compound | More deformation | Lower resistance to gap entry |
| Higher temperature | Elastomer may soften | Reduced extrusion resistance |
| Pressure cycling | Repeated loading | Nibbled or torn edges |
How Pressure, Hardness, and Temperature Interact
No single clearance value works for every application. A gap that is acceptable at low pressure may be unsafe at high pressure. A harder O-ring may resist extrusion better, but hardness also changes installation force and sealing behavior.
Use the O-ring hardness 70A vs 80A guide when evaluating durometer, and include the maximum service temperature rather than room-temperature conditions alone.

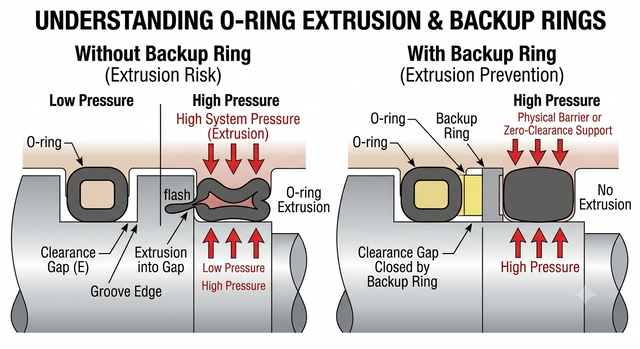

When a Backup Ring Helps
A backup ring is installed on the low-pressure side of the O-ring to block the extrusion gap. In reversing-pressure systems, backup rings may be needed on both sides. They support the elastomer but do not replace correct groove dimensions or material selection.
Backup rings are commonly considered when pressure is high, clearance cannot be reduced, temperature softens the seal, or repeated extrusion damage has already occurred.
How to Recognize Clearance-Gap Damage
- Ragged or scalloped damage on one edge
- Thin strips of rubber near the gland
- Damage concentrated on the low-pressure side
- Leakage that worsens after pressure cycles
- Repeated failure despite correct nominal O-ring size
Compare the removed seal with the O-ring failure causes guide before assuming all edge damage is extrusion.
What Buyers Should Check Before Ordering
- Measure the maximum diametral or radial hardware clearance.
- Record normal and peak system pressure.
- Confirm O-ring material and hardness.
- Include minimum and maximum temperature.
- Identify static, reciprocating, rotary, or pressure-cycling service.
- Check whether pressure acts in one direction or reverses.
- Confirm whether the groove can accept one or two backup rings.
Dimensional variation can change the worst-case gap. Review the O-ring tolerances guide rather than relying only on nominal hardware sizes.
Common Buyer Mistakes
- Providing pressure without providing hardware clearance.
- Choosing a harder seal without checking squeeze and installation.
- Adding a backup ring without confirming available groove width.
- Ignoring temperature-related softening.
- Assuming every cut edge is an installation problem.
- Measuring only the damaged O-ring instead of the gland.
Frequently Asked Questions
Can a harder O-ring prevent extrusion?
It may improve resistance, but it is not a complete fix. Pressure, clearance, temperature, squeeze, and material compatibility must still be checked.
Which side needs the backup ring?
It normally supports the O-ring on the low-pressure side where extrusion occurs. Reversing-pressure applications may need support on both sides.
Can extrusion happen in a static seal?
Yes. Motion can accelerate cutting, but sufficiently high pressure and excessive clearance can extrude a static O-ring too.
Final Selection Advice
Evaluate clearance gap, peak pressure, temperature, hardness, groove width, and pressure direction together. For replacement or production quantities, send a gland drawing and operating conditions through the custom O-ring quote request.
