Choosing the right O-ring for a common repair is usually a matter of matching four things: size, material, hardness, and the environment where the seal will work. If one of these details is wrong, the O-ring may leak, twist, swell, crack, or fail sooner than expected.
For many repairs, the old seal gives useful clues. But old O-rings can become flattened, stretched, swollen, or brittle, so they should not be treated as a perfect reference. This guide explains how to choose repair O-rings more carefully before ordering replacements.

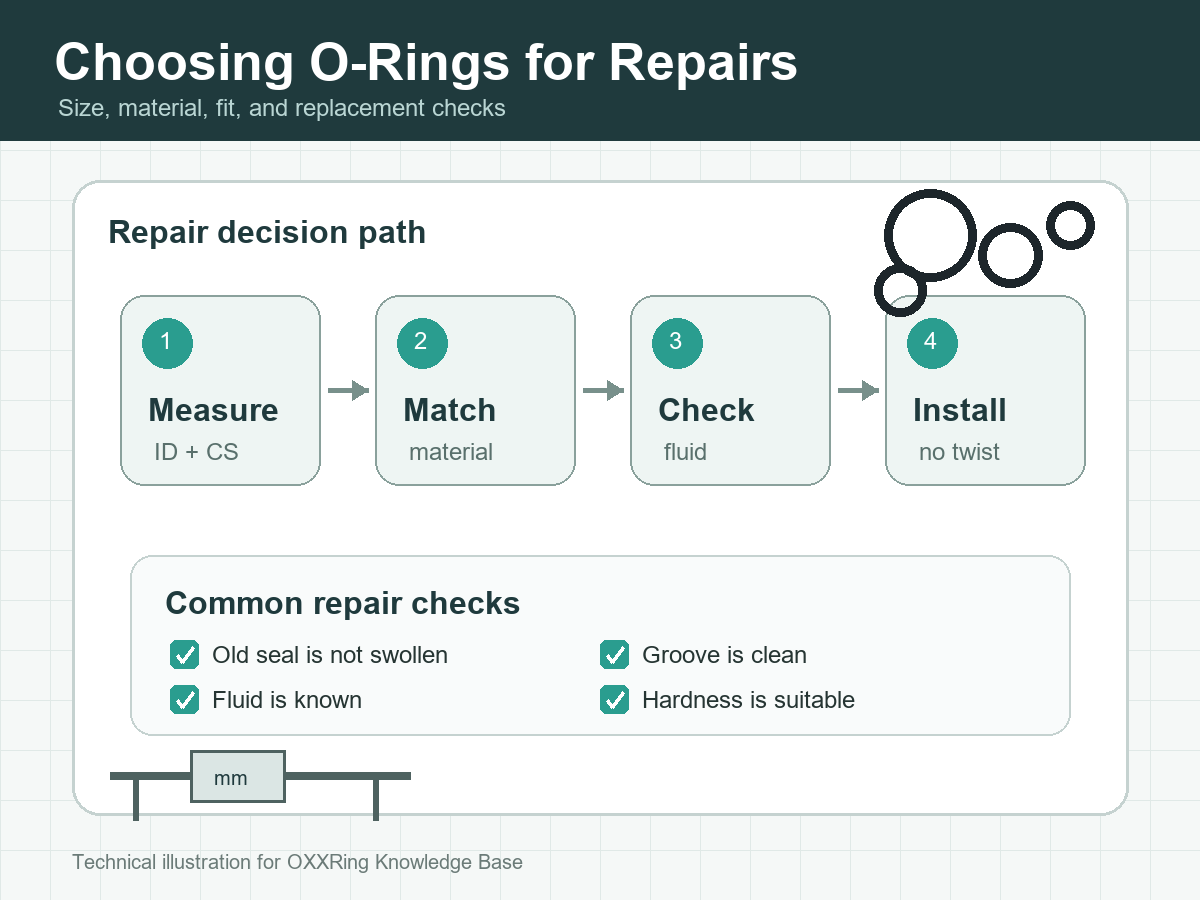

Quick Answer: How Do You Choose an O-Ring for Repair?
Choose an O-ring by confirming the groove size, measuring the inside diameter and cross section, matching the material to the fluid, and checking whether the seal is used in a static or moving application.
For a simple repair, start with these checks:
- Measure the inside diameter and cross section.
- Compare the measurement with an O-ring size chart.
- Identify the fluid, such as water, oil, grease, fuel, or cleaning chemicals.
- Choose a material that matches the environment.
- Check hardness if pressure or installation force matters.
- Inspect the groove and mating surfaces before installing the new seal.
If the repair is urgent and the exact size is uncertain, small O-ring packs can help with test fitting. For repeat maintenance, it is better to confirm the exact size and material before ordering larger quantities.
Step 1: Identify the Repair Application
Before choosing a replacement seal, identify where the O-ring is used. A faucet, pump, valve, automotive fitting, hose connector, and air tool may all use O-rings, but they may not need the same material or hardness.
Ask these questions first:
- What equipment is being repaired?
- Does the O-ring seal water, oil, grease, air, fuel, or chemicals?
- Is the seal indoors or outdoors?
- Is the application hot, cold, pressurized, or moving?
- Did the old O-ring fail by cracking, swelling, flattening, or tearing?
The failure pattern can point to the problem. Swelling may suggest the wrong material. Cracking may suggest aging, heat, ozone, or chemical exposure. Flattening may suggest compression set or long service life.
Step 2: Measure the O-Ring Size
The most important repair dimensions are inside diameter, cross section, and outside diameter. Inside diameter is the opening of the O-ring. Cross section is the thickness of the round rubber body. Outside diameter is the full outside width.
The basic formula is:
OD = ID + (2 x CS)
Use a caliper and measure the old seal without stretching it. If the old seal is damaged, compare the measured size with the equipment groove and a standard chart. If needed, review how to measure an O-ring before choosing a replacement.
Step 3: Match the Material to the Fluid
Material selection matters because rubber compounds react differently to oil, water, heat, weather, and chemicals. A seal that works well in one repair may fail quickly in another.
NBR O-rings are common for oil, grease, and many general repair jobs. EPDM is often used for water, steam, outdoor weather, and ozone exposure. FKM may be considered for fuel, higher heat, and stronger chemical resistance. Silicone may be useful when flexibility or temperature range is important.
If the fluid is unknown, check a material guide or chemical compatibility guide before buying. Do not choose by color alone, because black O-rings may be made from several different materials.
Step 4: Consider Hardness and Pressure
O-ring hardness is usually measured in Shore A durometer. Many repair O-rings are in the 70A range, but some applications may need a softer or harder seal.
A softer O-ring may compress more easily and seal with lower force. A harder O-ring may resist extrusion better in some pressure applications. The right choice depends on the groove, pressure, fluid, installation method, and original equipment requirements.
For higher pressure repairs, inspect the groove clearance and consider whether backup rings or a different sealing approach is required.
Step 5: Inspect the Groove Before Installation
A new O-ring can still leak if the groove is dirty, scratched, corroded, or damaged. Before installing the replacement, clean the groove and inspect the sealing surfaces.
Look for:
- Sharp edges
- Dirt or old rubber pieces
- Scratches or corrosion
- Incorrect groove depth
- Twisted or pinched installation
Install the O-ring evenly and avoid excessive stretching. Lubrication may help in some applications, but the lubricant must be compatible with the O-ring material and the system fluid.
Common Repair Mistakes
Guessing the Size
Visual guessing is risky. A slightly wrong size can leak or roll out of the groove.
Ignoring the Fluid
Oil, water, fuel, steam, and cleaning chemicals can require different materials. Compatibility should be checked before ordering.
Reusing a Damaged Seal as the Only Reference
Old seals can change shape. Measure carefully and compare against a standard chart when possible.
Buying Bulk Before Testing
For uncertain repair jobs, test a small quantity first. Once the size and material are confirmed, a bulk quote can make repeat maintenance easier.
Buying Checklist for Repair O-Rings
- Equipment or repair type
- Inside diameter
- Cross section
- Material requirement
- Hardness, if known
- Fluid exposure
- Temperature range
- Static or dynamic use
- Quantity needed
- Original part information, if available
Having these details ready helps reduce wrong orders and makes replacement faster.
FAQ
What is the most common O-ring material for repairs?
NBR is one of the most common materials for oil, grease, and general mechanical repairs, but it is not the right choice for every environment.
How do I know what O-ring size I need?
Measure the inside diameter and cross section, then compare the result with a size chart or the equipment groove.
Can I use any O-ring that fits?
No. The O-ring must fit and be made from a material compatible with the fluid, temperature, and application.
Should I buy a kit or a single size?
Buy a kit when the size is uncertain or you do many small repairs. Buy a single size when you know the exact replacement.
Why did my replacement O-ring fail quickly?
Common reasons include wrong size, wrong material, damaged groove, too much stretch, chemical attack, heat, or pressure extrusion.
Final Tip
Good repair O-ring selection starts with measurement and compatibility. Confirm the size, material, fluid exposure, and installation conditions before ordering. A few extra checks before purchase can prevent leaks, repeat repairs, and avoidable downtime.
