How to Measure an O-Ring: ID, CS, and OD Explained

Replacing an O-ring is much easier when you know three basic measurements: ID, CS, and OD.

You do not need to be an engineer to start. In most small-pack buying situations, you only need to measure the old O-ring carefully, confirm the material if possible, and then choose the closest matching size.

If you already know the size, you can browse O-ring small packs. If the size or material is unclear, measure first before ordering, or send the details through Bulk Quote.

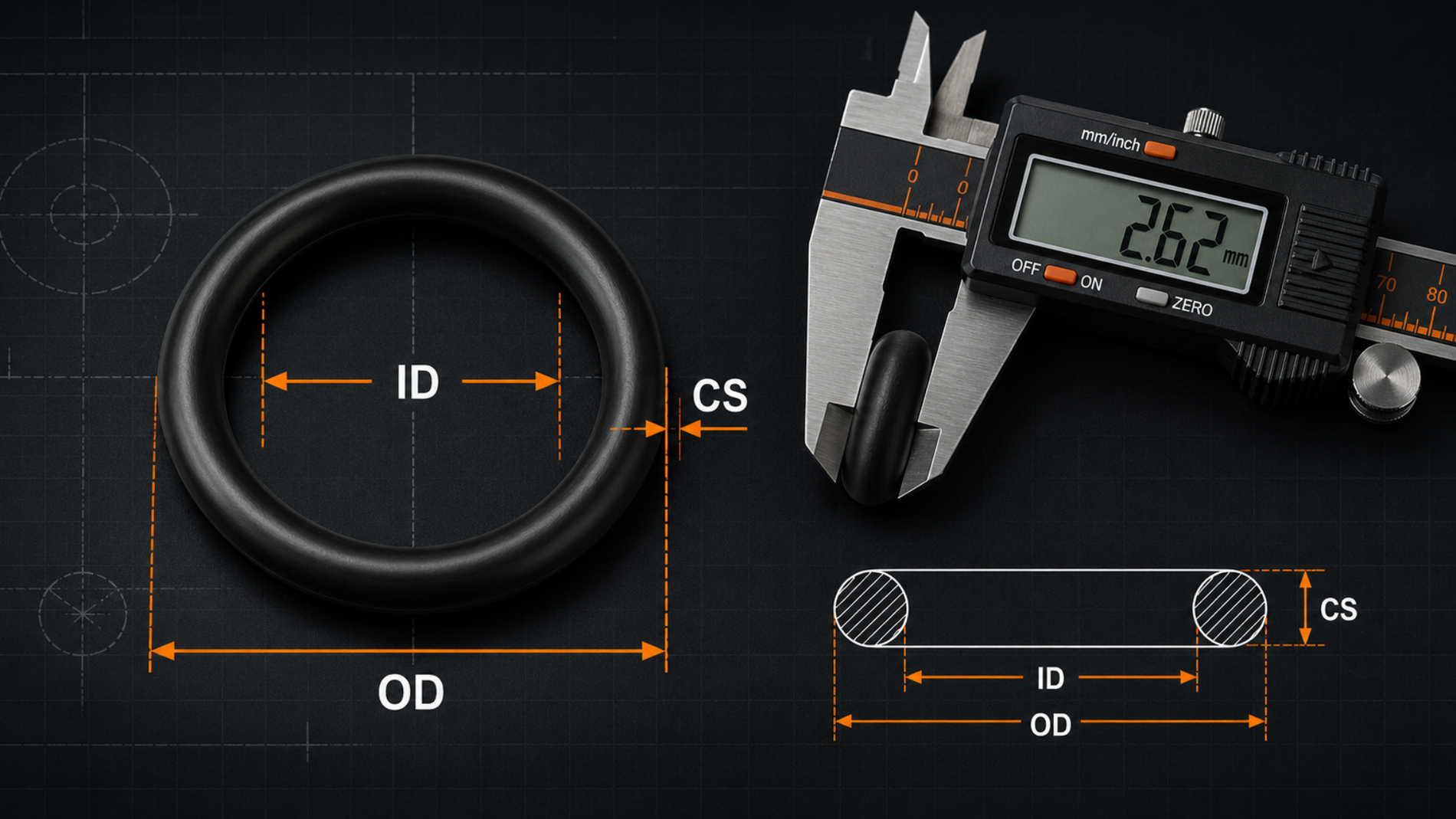

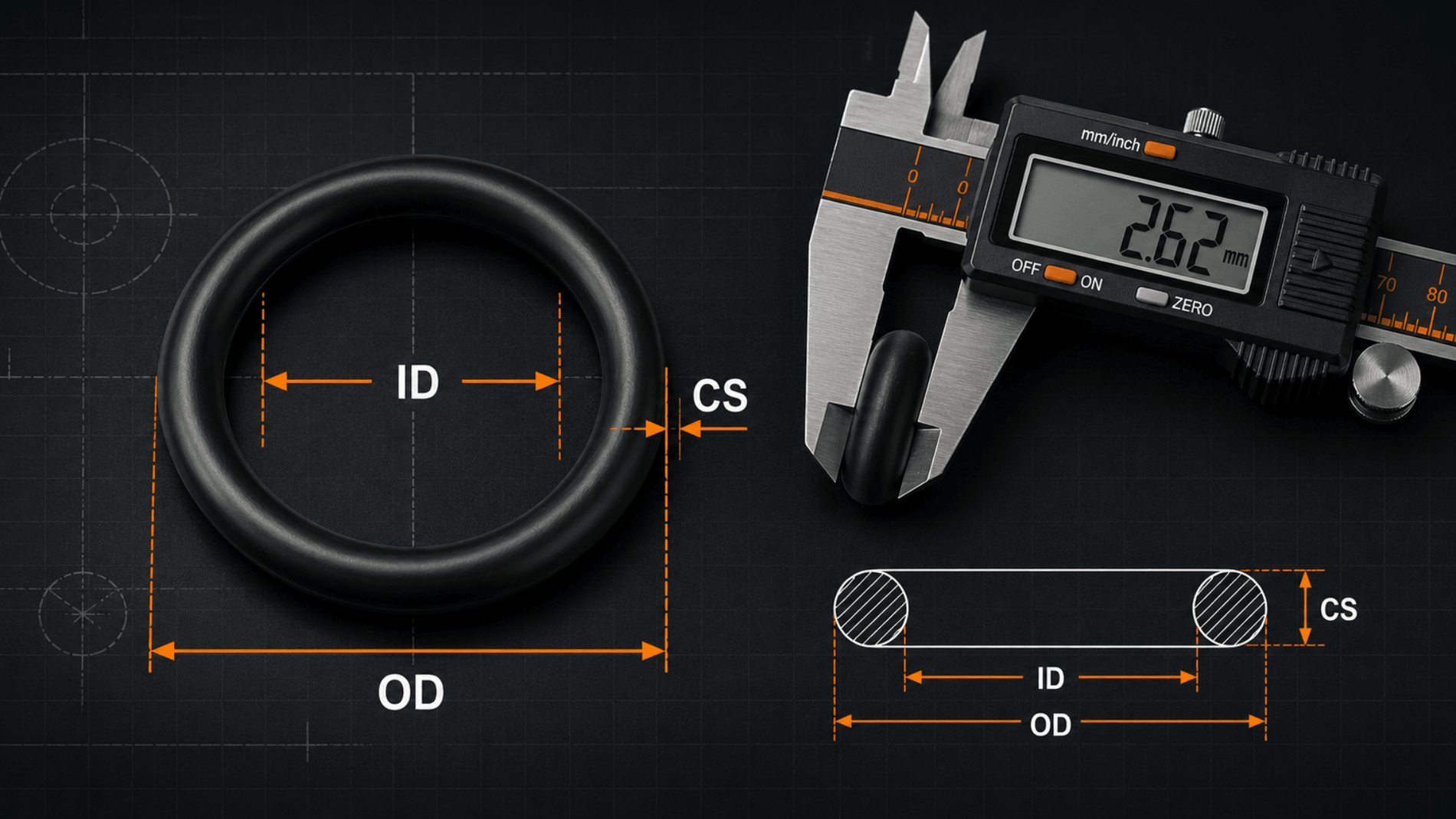

What do ID, CS, and OD mean?

Most O-ring sizes are based on three simple measurements.

ID means inner diameter.
This is the open space inside the O-ring.

CS means cross section.
This is the thickness of the rubber ring itself.

OD means outer diameter.
This is the full outside diameter of the O-ring.

The basic formula is:

OD = ID + (2 × CS)

For example, if an O-ring has a 10.00 mm inner diameter and a 2.00 mm cross section, the outer diameter is:

10.00 + (2 × 2.00) = 14.00 mm OD

When you buy a replacement O-ring, the most important numbers are usually ID and CS.

What tool should you use?

A digital caliper is the best tool for measuring an O-ring. It is more accurate than a ruler, especially for small sizes.

A ruler can help with a rough check, but it is easy to misread small O-rings. If the O-ring is very small, worn, or no longer round, measure it more than once.

Step 1: Measure the inner diameter

Place the O-ring flat on a clean surface. Do not stretch it.

Measure the open space inside the ring from one inner edge to the opposite inner edge. This is the inner diameter, or ID.

Try to keep the ring round while measuring. If the old O-ring is stretched or damaged, the number may not be exact.

Step 2: Measure the cross section

The cross section is the thickness of the rubber.

Use the caliper to measure the rubber thickness from one side of the ring to the other. This is the CS, or cross section.

This number matters a lot. Two O-rings can have the same inner diameter but different cross sections. A small difference in thickness can change how the O-ring seals.

Step 3: Check the outer diameter

Outer diameter is useful as a final check.

You can measure the full outside width of the O-ring, or calculate it with:

OD = ID + (2 × CS)

If the measured OD does not match the formula closely, measure the ID and CS again. The O-ring may be stretched, flattened, swollen, or not sitting flat.

How is an O-ring size usually written?

A metric O-ring size is usually written like this:

10.00 × 2.00 mm

This normally means:

10.00 mm ID × 2.00 mm CS

After you measure the ID and CS, the next step is to match those numbers to a listed size. For that step, read our O-Ring Size Chart Guide.

Some O-rings are also listed by standard numbers, such as AS568 sizes. If you know the standard number, you can search that number directly. If you only know the old size in inches, try searching the inch size or use the O-Ring Finder.

What if the old O-ring is damaged?

Old O-rings can change shape after use. Heat, oil, fuel, water, pressure, chemicals, and age can make rubber swell, shrink, flatten, or crack.

If the old O-ring looks damaged, do not rely on one measurement only. Measure in several places if possible. If you can see the groove or sealing area, that may also help confirm the size.

If you cannot confirm the size from the old ring, read what to do if you don't know your O-ring size.

If the size is unclear, or if the O-ring is used with fuel, chemicals, heat, pressure, or special equipment, it is safer to send the details through Bulk Quote before ordering.

Size is only one part of the choice

After you measure the size, you still need to think about the material.

For general oil and grease use, many buyers start with NBR. For outdoor, water, and weather exposure, EPDM is often considered. For fuel or higher heat, FKM may be a better fit. For flexible or clean applications, Silicone may be considered depending on the job.

For a simple material overview, read the O-Ring Material Guide. For fuel, oil, chemicals, steam, or unknown fluids, check the Chemical Compatibility Guide before ordering.

Quick checklist before you buy

• Measure ID from inside edge to inside edge.
• Measure CS as the rubber thickness.
• Use OD = ID + (2 × CS) as a check.
• Do not stretch the O-ring while measuring.
• Check material before ordering.
• Use Bulk Quote if the size, material, or application is unclear.

If the size and material are clear, browse standard O-ring small packs. If you need 100+ pcs, a special material, or a size you cannot find, use Bulk Quote.

FAQ

Is O-ring size written as ID × CS?

For most metric O-ring listings, yes. A size like 10.00 × 2.00 mm usually means 10.00 mm inner diameter × 2.00 mm cross section.

Can I measure an O-ring with a ruler?

You can use a ruler for a rough check, but a digital caliper is better. Small O-rings are easy to measure incorrectly with a ruler.

Should I measure the old O-ring or the groove?

If the old O-ring is in good condition, measuring the ring is fine. If it is worn, stretched, swollen, or flattened, the groove or sealing area may give better clues.

What if my size is not listed?

If your size is not listed, or if you need 100+ pcs, send the size and application through Bulk Quote.

What should I check after measuring the size?

Check the material. A correct size with the wrong material can still fail in fuel, oil, heat, steam, outdoor use, or chemical exposure.
