EPDM O-ring

O-Ring 69.35 × 1.78 mm · EPDM · 70A

  • ID69.35 mm2.730 in
  • CS1.78 mm0.070 in
  • MaterialEPDM
  • Hardness70 Shore A

OXXRING SKU OXX-OR-69P35-1P78-EPDM-70A-P10

O-Ring 69.35 × 1.78 mm · EPDM · 70A

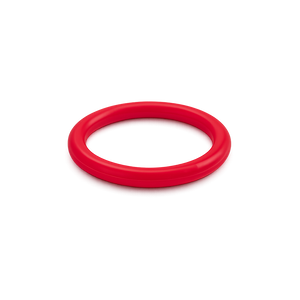

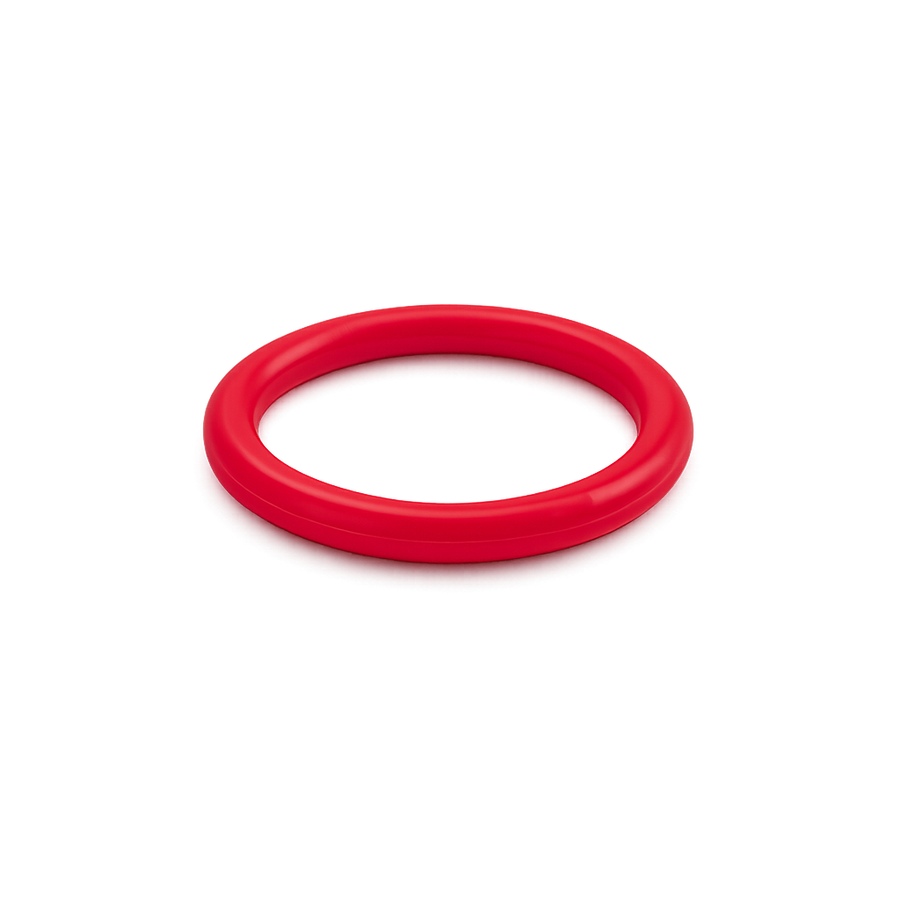

Representative image. Colour can differ by compound.
ID 69.35 mm CS 1.78 mm SECTION
Nominal dimensions. Drawing is proportional, not to scale.

Same size, other grades

Compare every grade at this size →
Available to order
$10.45for 10 pcs

$1.05 per piece

1 pack × 10 pcs = 10 pieces · $10.45

Choose a pack size
  • Price is the total for the pack. Taxes and shipping are calculated at checkout.

Need 1,000+ or a different spec? Bulk quote

Standard items: returns per our Refund Policy. Custom items are made to order.

Specifications

Inside diameter (ID)69.35 mm · 2.730 in
Cross section (CS)1.78 mm · 0.070 in
Material familyEPDM
Hardness70 Shore A
OXXRING SKUOXX-OR-69P35-1P78-EPDM-70A-P10
OrderingBuy online
Check chemical compatibility for EPDM Check this size in a groove

Check this size for your application

Free engineering tools, already filled in with 69.35 × 1.78 mm EPDM.

Engineer ProRod, piston, face or dynamic seal: squeeze, extrusion and pressure for this exact ring Material selectorMedia, temperature and pressure to the right family Size cross-referenceThis size in AS568, JIS and BS terms CalculatorsWeight, cord length and stretch

Same size, other materials and hardness

Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.

SizeMaterialSize referenceSmallest packOrderingAction
69.35 × 1.78 mm2.730 × 0.070 in NBR 70A — $4.99 / 10 pcs $0.50 / pc Available to order Choose pack
69.35 × 1.78 mm2.730 × 0.070 in Silicone 70A — $14.02 / 10 pcs $1.40 / pc Available to order Choose pack
69.35 × 1.78 mm2.730 × 0.070 in FFKM 75A — $111.82 / 2 pcs $55.91 / pc Available to order Choose pack
69.35 × 1.78 mm2.730 × 0.070 in FKM 90A — $23.14 / 10 pcs $2.31 / pc Available to order Choose pack

EPDM material notes

Usually a good starting point for

Ozone/weathering, inorganic acids, alkalis, phosphate esters and many polar-fluid services.

Review before use with

Mineral oils and fuels are not default EPDM service; hot-water and steam use remains condition-dependent.

Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.

Questions about this O-ring

How do I confirm this is the right size?

Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 69.35 × 1.78 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide

How is the price calculated?

The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.

Can I order a quantity that is not in the pack list?

Yes. Order several packs, or request a quote for larger or scheduled quantities.
