FKM O-ring

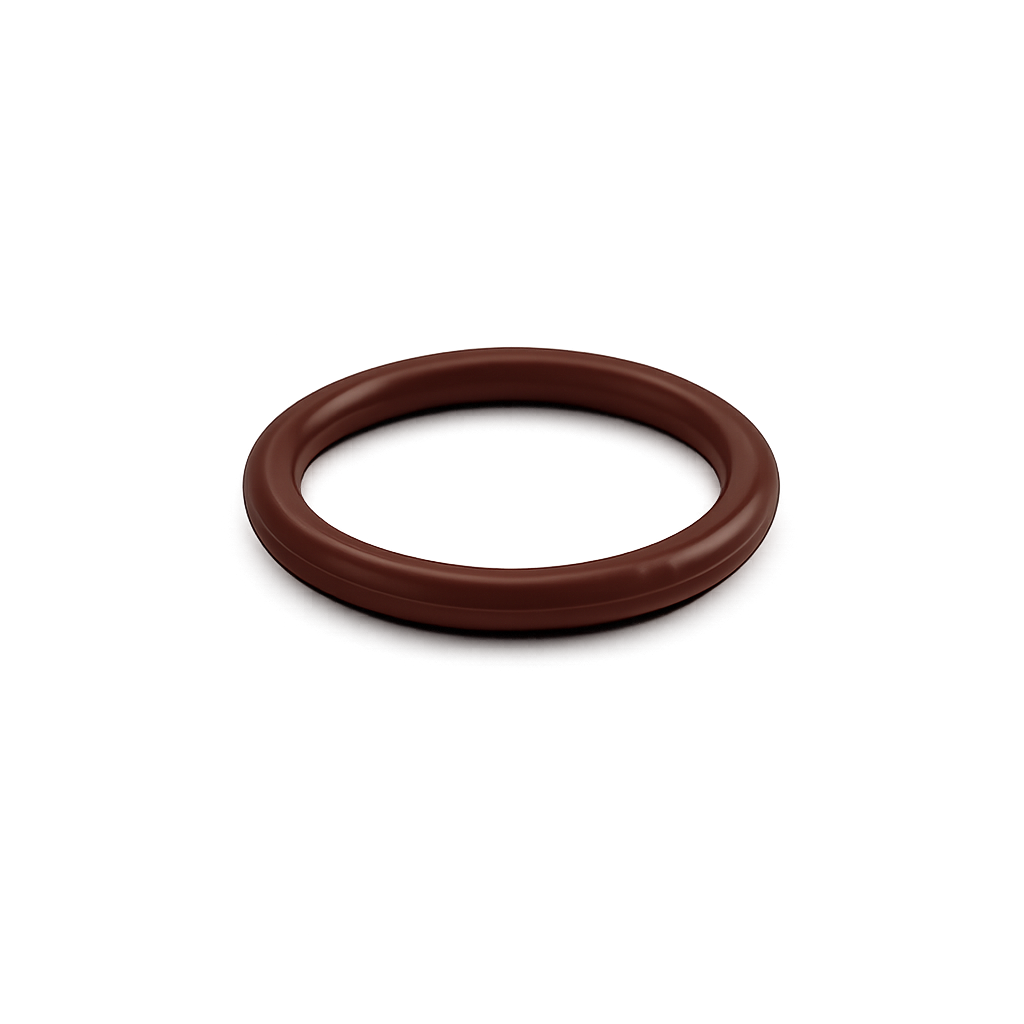

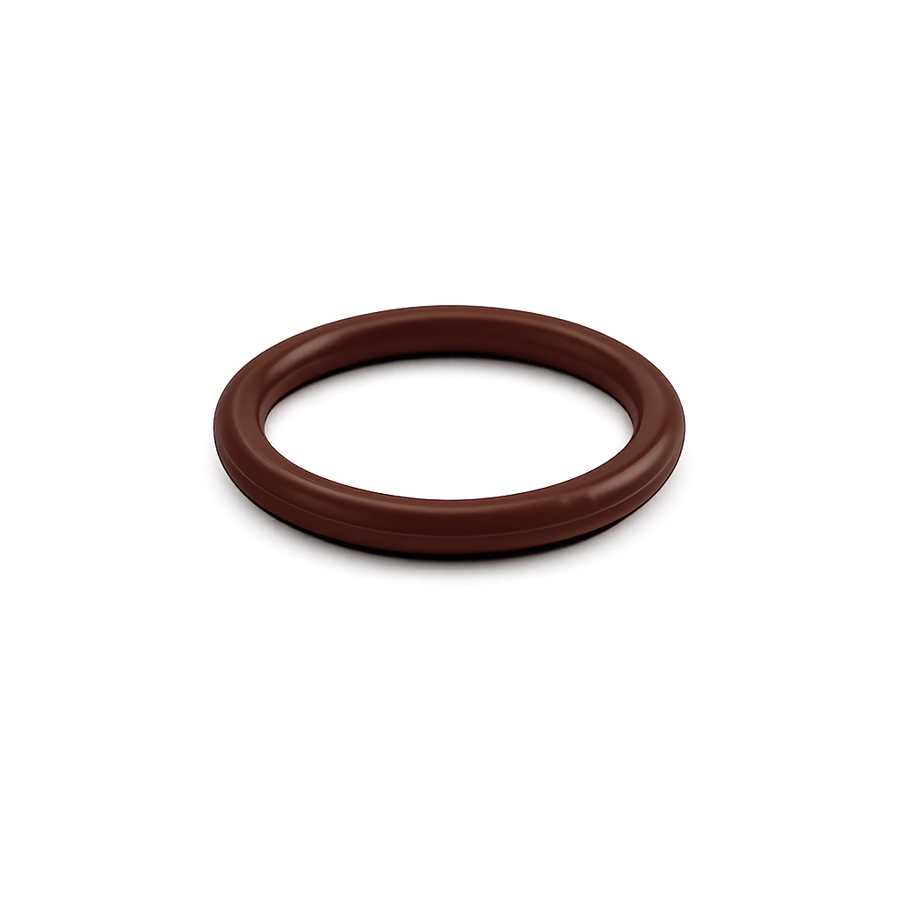

O-Ring 64.77 × 2.49 mm · FKM · 80A
- ID64.77 mm2.550 in
- CS2.49 mm0.098 in
- MaterialFKM
- Hardness80 Shore A
OXXRING SKU OXX-OR-64P77-2P49-FKM-80A-P10
Same size, other grades
Compare every grade at this size →$2.15 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 64.77 mm · 2.550 in |
|---|---|
| Cross section (CS) | 2.49 mm · 0.098 in |
| Material family | FKM |
| Hardness | 80 Shore A |
| OXXRING SKU | OXX-OR-64P77-2P49-FKM-80A-P10 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 64.77 × 2.49 mm FKM.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 64.77 × 2.49 mm2.550 × 0.098 in | NBR 70A | — | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 64.77 × 2.49 mm2.550 × 0.098 in | EPDM 70A | — | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 64.77 × 2.49 mm2.550 × 0.098 in | Silicone 70A | — | $15.18 / 10 pcs $1.52 / pc | Available to order | Choose pack |
| 64.77 × 2.49 mm2.550 × 0.098 in | FFKM 75A | — | $105.90 / pc $105.90 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
FKM material notes
Usually a good starting point for
Mineral oils, hydraulic fluids, gasoline, many hydrocarbons, ozone/weathering and selected vacuum-service conditions.
Review before use with
Review steam, glycol brake fluid, alkalis, amines/ammonia, organic acids and demanding dynamic service.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 64.77 × 2.49 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
