FFKM O-ring

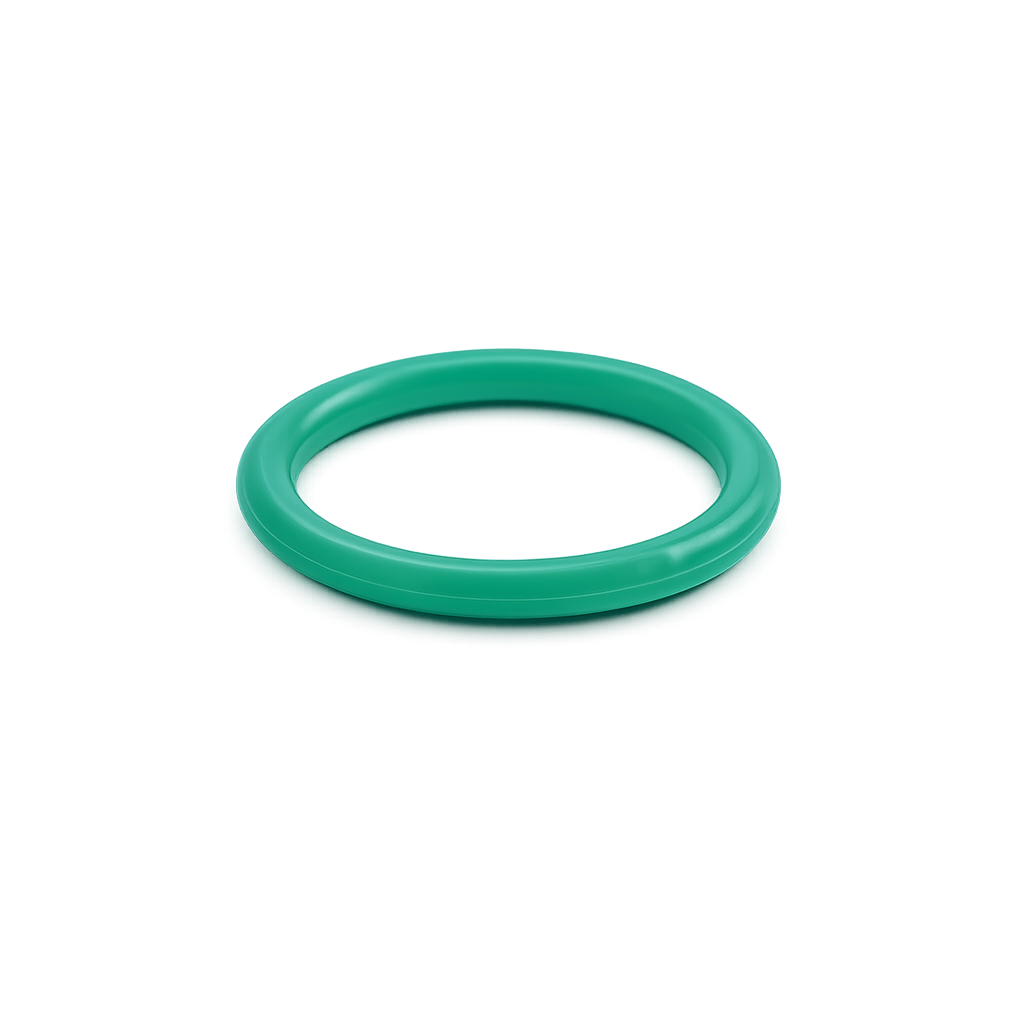

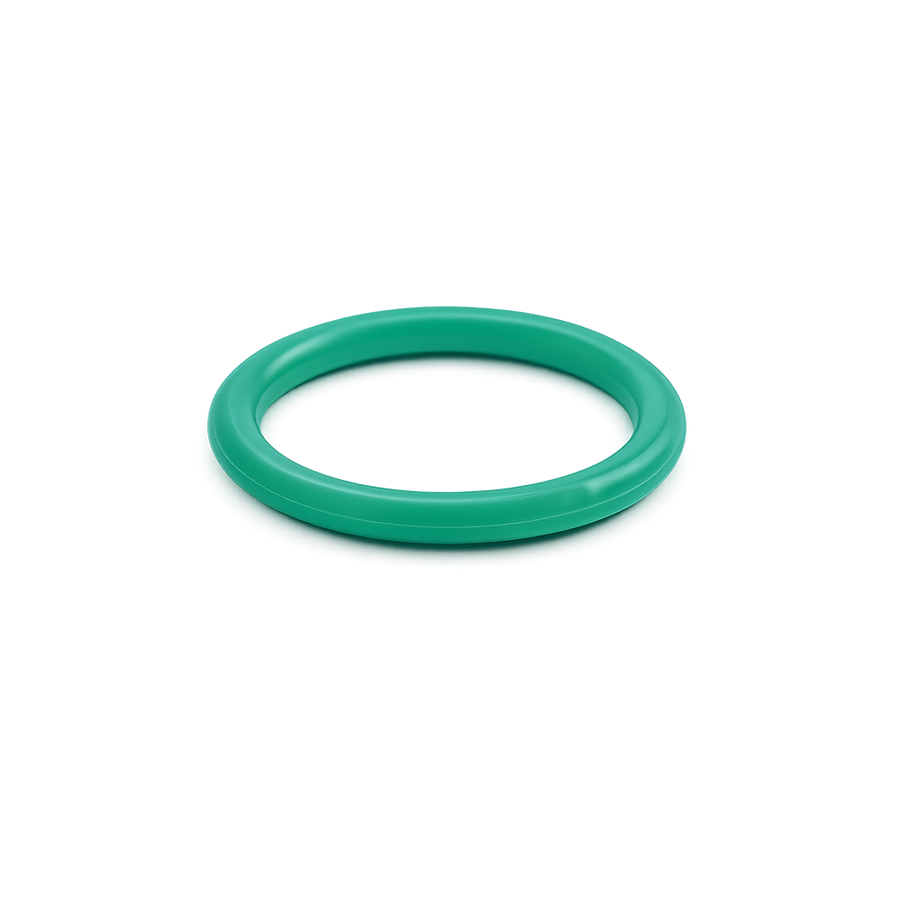

O-Ring 63.22 × 1.75 mm · FFKM · 75A
- ID63.22 mm2.489 in
- CS1.75 mm0.069 in
- MaterialFFKM
- Hardness75 Shore A
OXXRING SKU OXX-OR-63P22-1P75-FFKM-75A-P2
Same size, other grades
Compare every grade at this size →$66.86 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 63.22 mm · 2.489 in |
|---|---|
| Cross section (CS) | 1.75 mm · 0.069 in |
| Material family | FFKM |
| Hardness | 75 Shore A |
| OXXRING SKU | OXX-OR-63P22-1P75-FFKM-75A-P2 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 63.22 × 1.75 mm FFKM.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 63.22 × 1.75 mm2.489 × 0.069 in | NBR 70A | — | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 63.22 × 1.75 mm2.489 × 0.069 in | EPDM 70A | — | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 63.22 × 1.75 mm2.489 × 0.069 in | Silicone 70A | — | $12.61 / 10 pcs $1.26 / pc | Available to order | Choose pack |
| 63.22 × 1.75 mm2.489 × 0.069 in | FKM 90A | — | $21.67 / 10 pcs $2.17 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
FFKM material notes
Usually a good starting point for
Broad chemical-service screening including aromatic/chlorinated hydrocarbons, ketones, esters, ethers, polar solvents, organic acids, steam and vacuum.
Review before use with
Fluorinated refrigerants and temperature-critical service require exact-compound review.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 63.22 × 1.75 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
