NBR O-ring · AS568-902 size reference

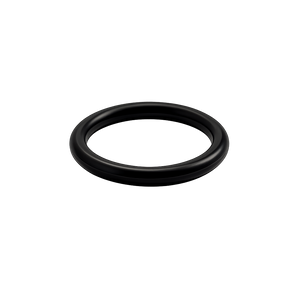

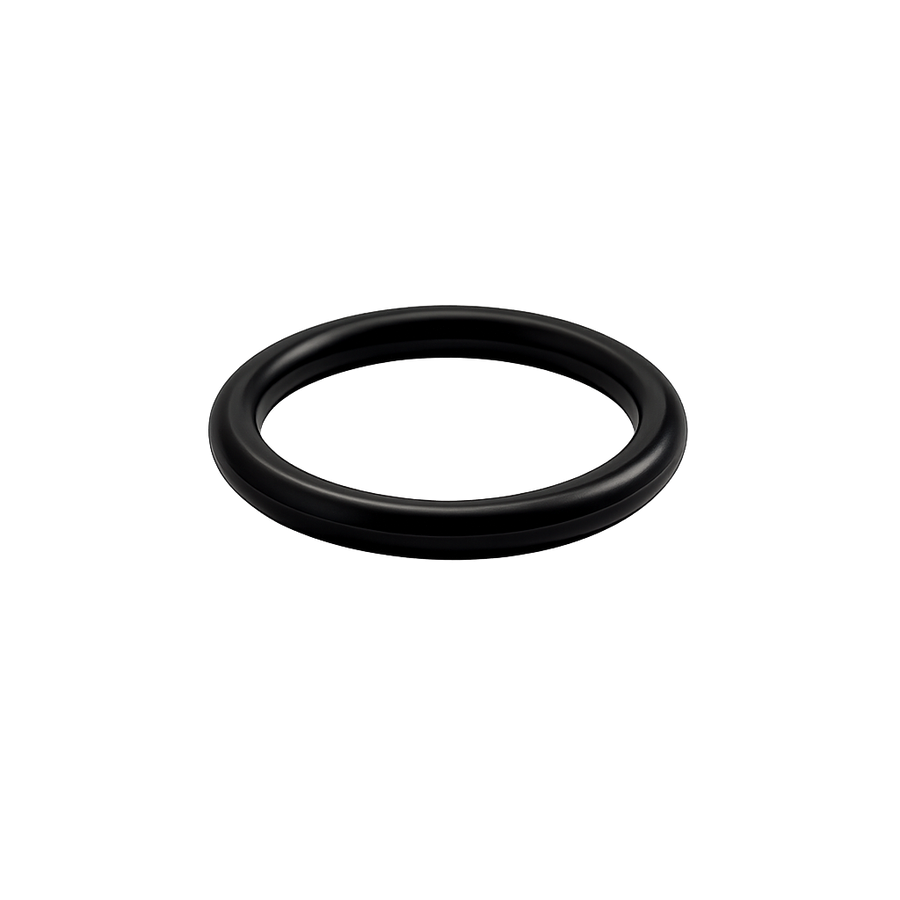

O-Ring 6.07 × 1.63 mm · NBR · 80A
- ID6.07 mm0.239 in
- CS1.63 mm0.064 in
- MaterialNBR
- Hardness80 Shore A
OXXRING SKU OXX-OR-6P07-1P63-NBR-80A-P10
Same size, other grades
Compare every grade at this size →$0.50 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 6.07 mm · 0.239 in |
|---|---|
| Cross section (CS) | 1.63 mm · 0.064 in |
| Material family | NBR |
| Hardness | 80 Shore A |
| Size reference | AS568-902, BS1806-902 |
| OXXRING SKU | OXX-OR-6P07-1P63-NBR-80A-P10 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 6.07 × 1.63 mm NBR.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 6.07 × 1.63 mm0.239 × 0.064 in | FKM 80A | AS568-902 | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 6.07 × 1.63 mm0.239 × 0.064 in | EPDM 70A | AS568-902 | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 6.07 × 1.63 mm0.239 × 0.064 in | Silicone 70A | AS568-902 | $4.99 / 10 pcs $0.50 / pc | Available to order | Choose pack |
| 6.07 × 1.63 mm0.239 × 0.064 in | FFKM 80A | AS568-902 | $107.47 / 7 pcs $15.35 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
NBR material notes
Usually a good starting point for
Mineral oils, many fuels, hydraulic fluids and aliphatic-hydrocarbon service.
Review before use with
Review ozone/weathering, flex fuels, aromatic or chlorinated hydrocarbons, ketones, esters, polar solvents, glycol brake fluid and strong acids.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 6.07 × 1.63 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
Is the size reference a certification?
No. A size reference such as AS568 or ISO 3601 describes nominal dimensions. It does not certify the compound or approve the part for a specific application.
