NBR O-ring

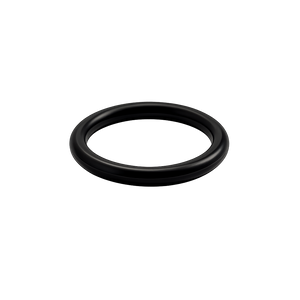

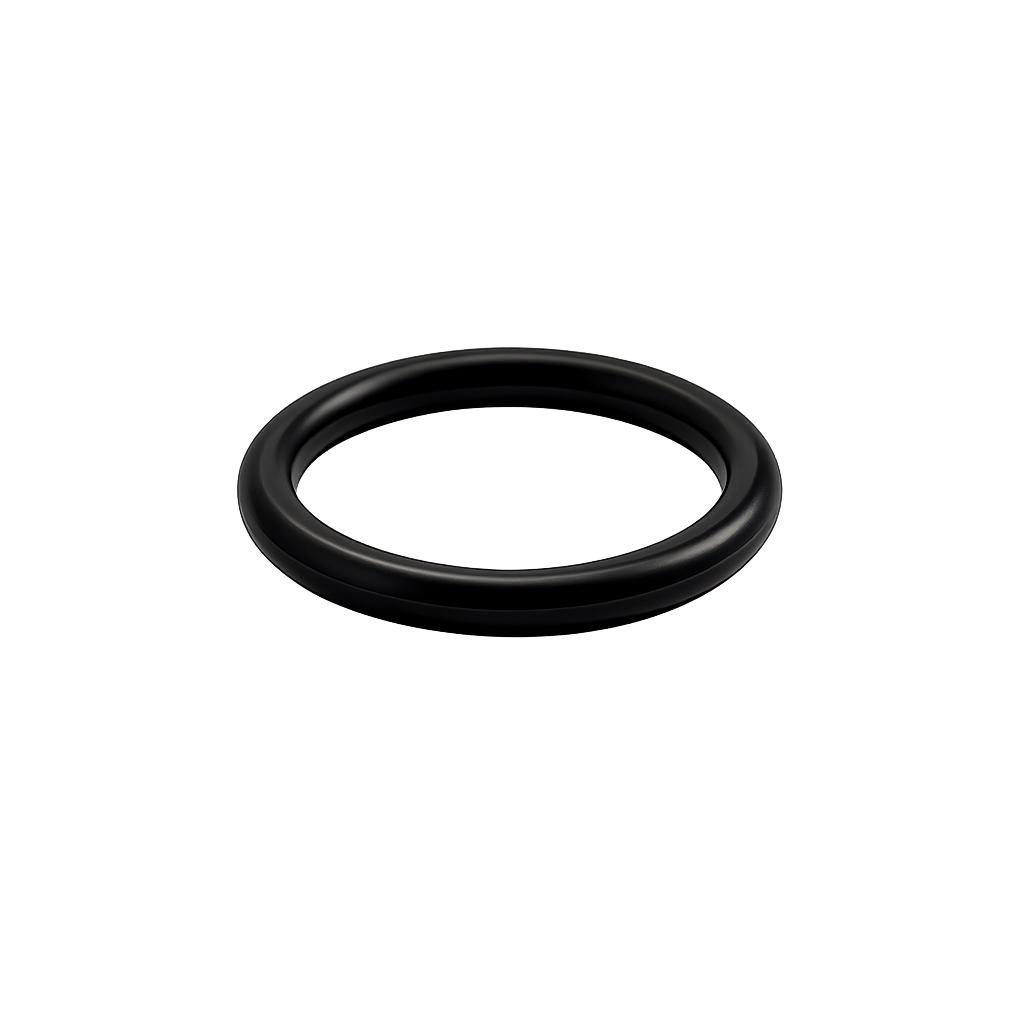

O-Ring 319.30 × 5.70 mm · NBR · 70A
- ID319.30 mm12.571 in
- CS5.70 mm0.224 in
- MaterialNBR
- Hardness70 Shore A
OXXRING SKU OXX-OR-319P3-5P7-NBR-70A-P10
$3.98 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 319.30 mm · 12.571 in |
|---|---|
| Cross section (CS) | 5.70 mm · 0.224 in |
| Material family | NBR |
| Hardness | 70 Shore A |
| OXXRING SKU | OXX-OR-319P3-5P7-NBR-70A-P10 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 319.30 × 5.70 mm NBR.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 319.30 × 5.70 mm12.571 × 0.224 in | FKM 80A | — | $51.27 / 3 pcs $17.09 / pc | Available to order | Choose pack |
| 319.30 × 5.70 mm12.571 × 0.224 in | EPDM 70A | — | $45.28 / 10 pcs $4.53 / pc | Available to order | Choose pack |
| 319.30 × 5.70 mm12.571 × 0.224 in | FFKM 75A | — | $901.80 / pc $901.80 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
NBR material notes
Usually a good starting point for
Mineral oils, many fuels, hydraulic fluids and aliphatic-hydrocarbon service.
Review before use with
Review ozone/weathering, flex fuels, aromatic or chlorinated hydrocarbons, ketones, esters, polar solvents, glycol brake fluid and strong acids.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 319.30 × 5.70 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
