FFKM O-ring · AS568-276 size reference

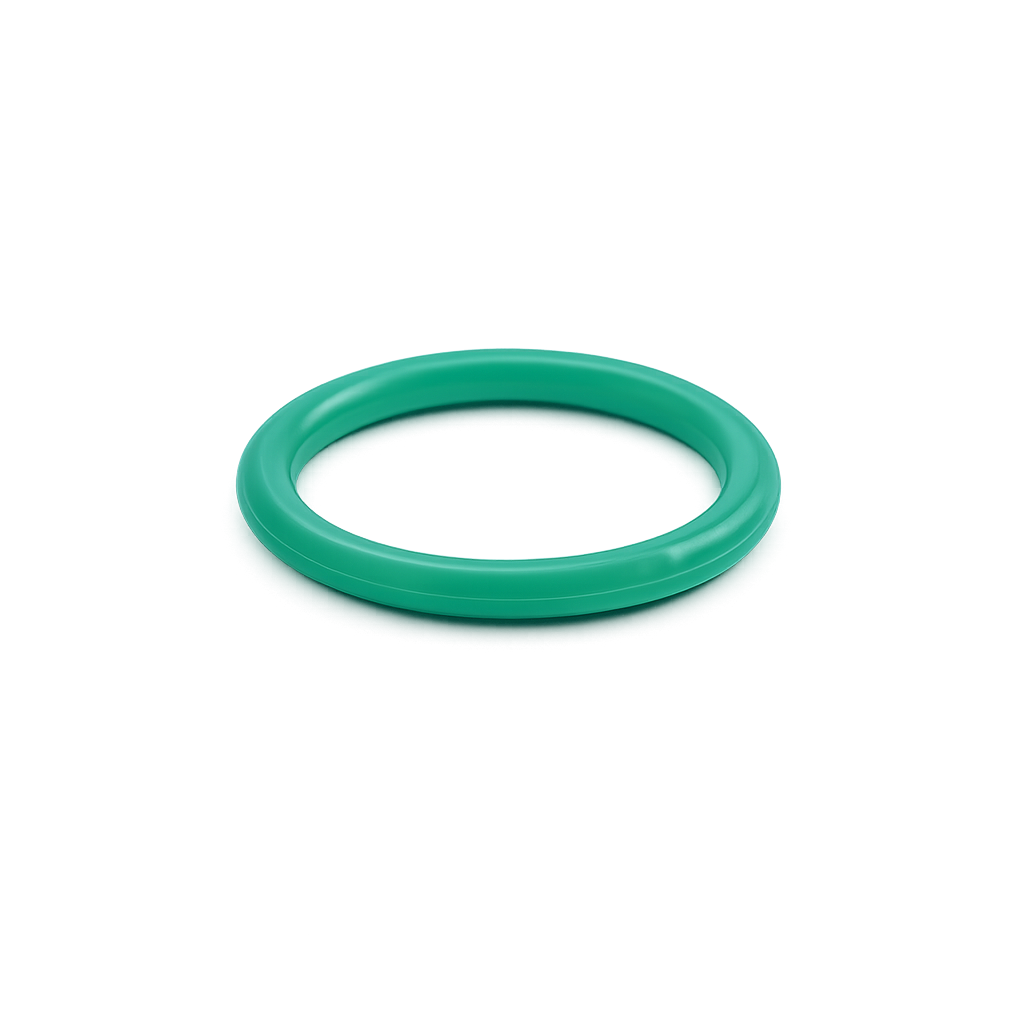

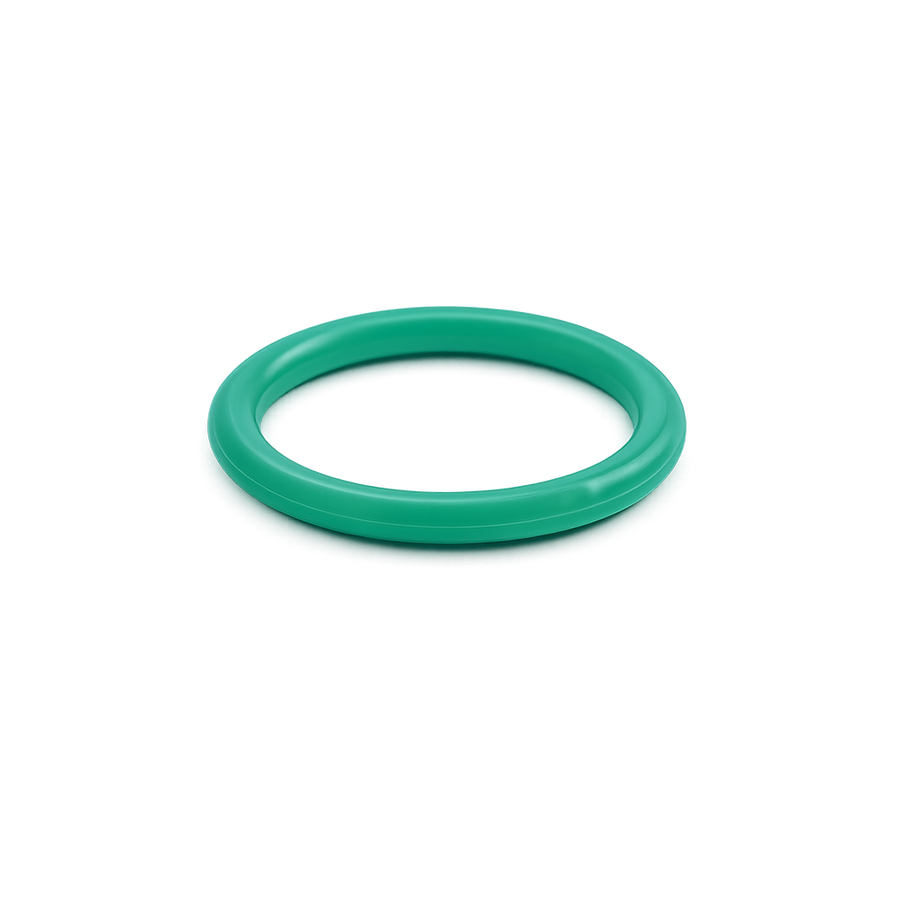

O-Ring 278.99 × 3.53 mm · FFKM · 70A
- ID278.99 mm10.984 in
- CS3.53 mm0.139 in
- MaterialFFKM
- Hardness70 Shore A
OXXRING SKU OXX-OR-278P99-3P53-FFKM-70A-P1
Same size, other grades
Compare every grade at this size →$453.45 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 278.99 mm · 10.984 in |
|---|---|
| Cross section (CS) | 3.53 mm · 0.139 in |
| Material family | FFKM |
| Hardness | 70 Shore A |
| Size reference | AS568-276, BS1806-276 |
| OXXRING SKU | OXX-OR-278P99-3P53-FFKM-70A-P1 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 278.99 × 3.53 mm FFKM.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 278.99 × 3.53 mm10.984 × 0.139 in | NBR 70A | AS568-276 | $20.82 / 10 pcs $2.08 / pc | Available to order | Choose pack |
| 278.99 × 3.53 mm10.984 × 0.139 in | FKM 80A | AS568-276 | $51.12 / 6 pcs $8.52 / pc | Available to order | Choose pack |
| 278.99 × 3.53 mm10.984 × 0.139 in | EPDM 70A | AS568-276 | $44.90 / 10 pcs $4.49 / pc | Available to order | Choose pack |
| 278.99 × 3.53 mm10.984 × 0.139 in | Silicone 70A | AS568-276 | $61.76 / 10 pcs $6.18 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
FFKM material notes
Usually a good starting point for
Broad chemical-service screening including aromatic/chlorinated hydrocarbons, ketones, esters, ethers, polar solvents, organic acids, steam and vacuum.
Review before use with
Fluorinated refrigerants and temperature-critical service require exact-compound review.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 278.99 × 3.53 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
Is the size reference a certification?
No. A size reference such as AS568 or ISO 3601 describes nominal dimensions. It does not certify the compound or approve the part for a specific application.
