FKM O-ring · AS568-376 size reference

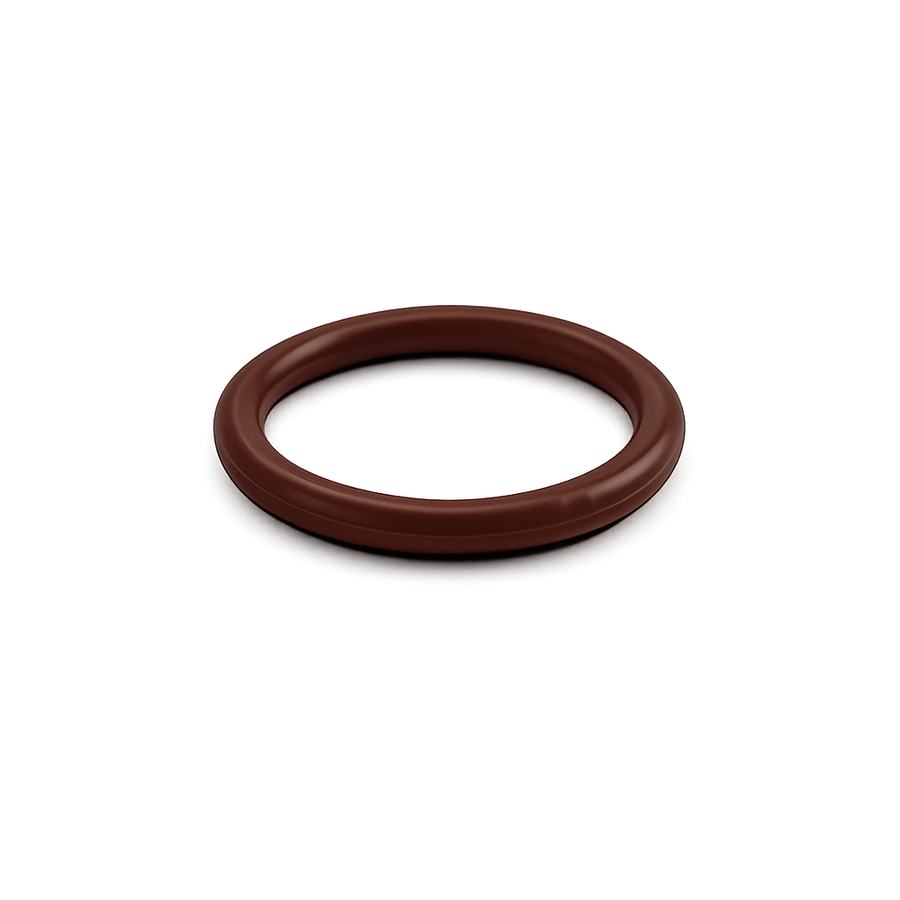

O-Ring 247.02 × 5.33 mm · FKM · 80A
- ID247.02 mm9.725 in
- CS5.33 mm0.210 in
- MaterialFKM
- Hardness80 Shore A
OXXRING SKU OXX-OR-247P02-5P33-FKM-80A-P3
Same size, other grades
Compare every grade at this size →$10.16 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 247.02 mm · 9.725 in |
|---|---|
| Cross section (CS) | 5.33 mm · 0.210 in |
| Material family | FKM |
| Hardness | 80 Shore A |
| Size reference | AS568-376, BS1806-376 |
| OXXRING SKU | OXX-OR-247P02-5P33-FKM-80A-P3 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 247.02 × 5.33 mm FKM.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 247.02 × 5.33 mm9.725 × 0.210 in | NBR 70A | AS568-376 | $38.17 / 20 pcs $1.91 / pc | Available to order | Choose pack |
| 247.02 × 5.33 mm9.725 × 0.210 in | EPDM 70A | AS568-376 | $56.08 / 10 pcs $5.61 / pc | Available to order | Choose pack |
| 247.02 × 5.33 mm9.725 × 0.210 in | Silicone 70A | AS568-376 | $73.69 / 10 pcs $7.37 / pc | Available to order | Choose pack |
| 247.02 × 5.33 mm9.725 × 0.210 in | FFKM 80A | AS568-376 | $580.51 / pc $580.51 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
FKM material notes
Usually a good starting point for
Mineral oils, hydraulic fluids, gasoline, many hydrocarbons, ozone/weathering and selected vacuum-service conditions.
Review before use with
Review steam, glycol brake fluid, alkalis, amines/ammonia, organic acids and demanding dynamic service.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 247.02 × 5.33 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
Is the size reference a certification?
No. A size reference such as AS568 or ISO 3601 describes nominal dimensions. It does not certify the compound or approve the part for a specific application.
