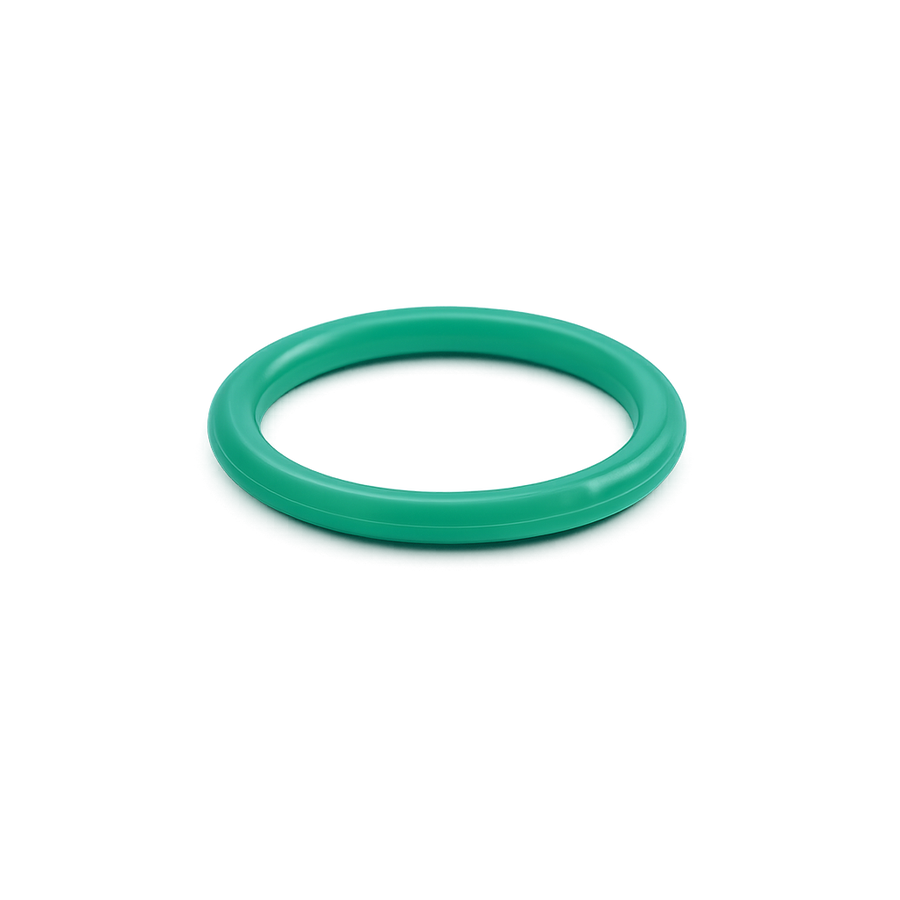

FFKM O-ring
O-Ring 159.50 × 3.05 mm · FFKM · 75A
- ID159.50 mm6.280 in
- CS3.05 mm0.120 in
- MaterialFFKM
- Hardness75 Shore A
OXXRING SKU OXX-OR-159P5-3P05-FFKM-75A-P1
$113.64 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 159.50 mm · 6.280 in |
|---|---|
| Cross section (CS) | 3.05 mm · 0.120 in |
| Material family | FFKM |
| Hardness | 75 Shore A |
| OXXRING SKU | OXX-OR-159P5-3P05-FFKM-75A-P1 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 159.50 × 3.05 mm FFKM.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 159.50 × 3.05 mm6.280 × 0.120 in | NBR 80A | — | $12.61 / 10 pcs $1.26 / pc | Available to order | Choose pack |
| 159.50 × 3.05 mm6.280 × 0.120 in | EPDM 70A | — | $14.19 / 10 pcs $1.42 / pc | Available to order | Choose pack |
| 159.50 × 3.05 mm6.280 × 0.120 in | Silicone 70A | — | $39.58 / 10 pcs $3.96 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
FFKM material notes
Usually a good starting point for
Broad chemical-service screening including aromatic/chlorinated hydrocarbons, ketones, esters, ethers, polar solvents, organic acids, steam and vacuum.
Review before use with
Fluorinated refrigerants and temperature-critical service require exact-compound review.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 159.50 × 3.05 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
