Bearing kit +BHS +BIN / order 11279478 / D-end bearing shield
Source: DanfossView public source →NBR O-ring · AS568-259 size reference

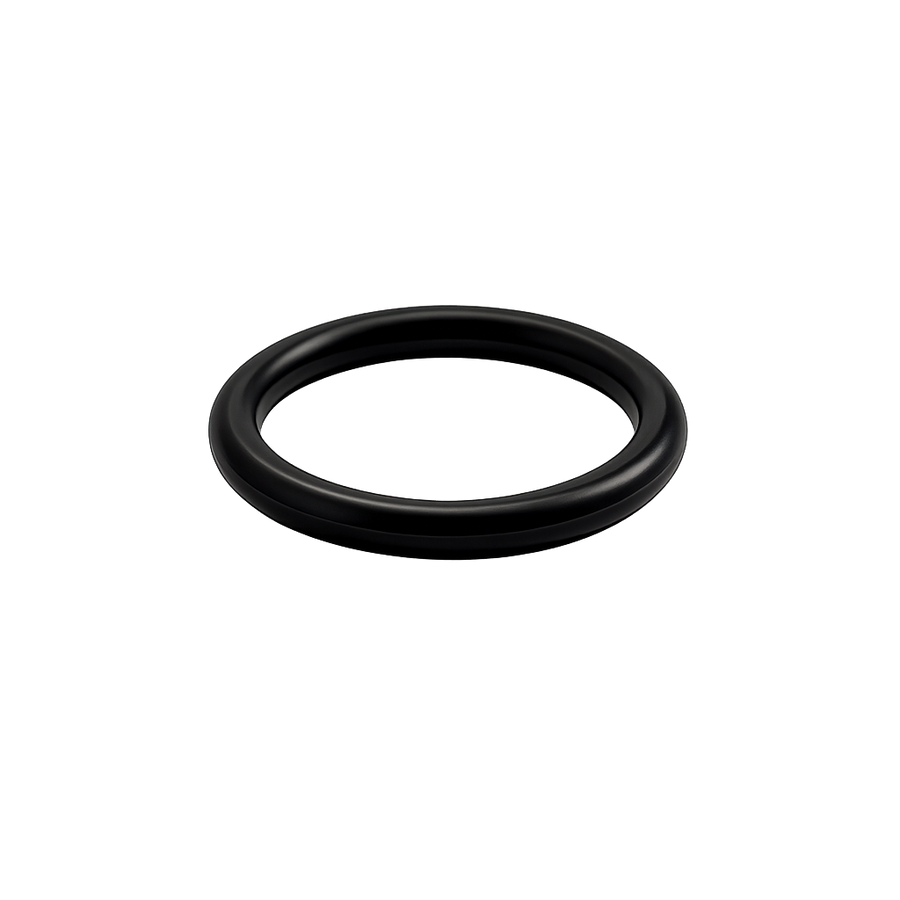

O-Ring 158.34 × 3.53 mm · NBR · 70A
- ID158.34 mm6.234 in
- CS3.53 mm0.139 in
- MaterialNBR
- Hardness70 Shore A
OXXRING SKU OXX-OR-158P34-3P53-NBR-70A-P10
Same size, other grades
Compare every grade at this size →
Available to order
$8.95for 10 pcs
$0.90 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 158.34 mm · 6.234 in |
|---|---|
| Cross section (CS) | 3.53 mm · 0.139 in |
| Material family | NBR |
| Hardness | 70 Shore A |
| Size reference | AS568-259, BS1806-259 |
| OXXRING SKU | OXX-OR-158P34-3P53-NBR-70A-P10 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 158.34 × 3.53 mm NBR.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 158.34 × 3.53 mm6.234 × 0.139 in | FKM 80A | AS568-259 | $74.94 / 15 pcs $5.00 / pc | Available to order | Choose pack |
| 158.34 × 3.53 mm6.234 × 0.139 in | EPDM 70A | AS568-259 | $189.89 / 10 pcs $18.99 / pc | Available to order | Choose pack |
| 158.34 × 3.53 mm6.234 × 0.139 in | Silicone 70A | AS568-259 | $36.88 / 10 pcs $3.69 / pc | Available to order | Choose pack |
| 158.34 × 3.53 mm6.234 × 0.139 in | FFKM 75A | AS568-259 | $275.22 / pc $275.22 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
NBR material notes
Usually a good starting point for
Mineral oils, many fuels, hydraulic fluids and aliphatic-hydrocarbon service.
Review before use with
Review ozone/weathering, flex fuels, aromatic or chlorinated hydrocarbons, ketones, esters, polar solvents, glycol brake fluid and strong acids.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Documents
Where this configuration is used
Public references that match this ID, cross section, material and hardness. They show documented use in equipment; they do not approve this O-ring for your conditions or make OXXRING the original equipment supplier.
Bearing kit +BHS / order 11279477 / D-end bearing shield
Source: DanfossView public source →Bearing kit +BIN / order 11279475 / D-end bearing shield
Source: DanfossView public source →Bearing kit NON-INSULATED / order 11279474 / D-end bearing shield
Source: DanfossView public source →Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 158.34 × 3.53 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
Is the size reference a certification?
No. A size reference such as AS568 or ISO 3601 describes nominal dimensions. It does not certify the compound or approve the part for a specific application.
