NBR O-ring

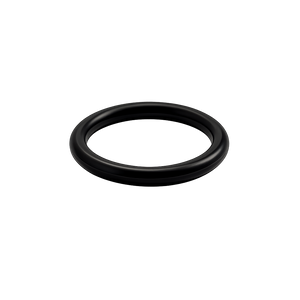

O-Ring 100.00 × 6.00 mm · NBR · 80A
- ID100.00 mm3.937 in
- CS6.00 mm0.236 in
- MaterialNBR
- Hardness80 Shore A
OXXRING SKU OXX-OR-100P0-6P0-NBR-80A-P10
Same size, other grades
Compare every grade at this size →$1.38 per piece
- Fast Dispatch
- Quality Checked Before Shipping
- Bulk Orders Available
- Fast Response on WhatsApp
- Secure Payment
Need 1,000+ or a different spec? Bulk quote
Standard items: returns per our Refund Policy. Custom items are made to order.
Specifications
| Inside diameter (ID) | 100.00 mm · 3.937 in |
|---|---|
| Cross section (CS) | 6.00 mm · 0.236 in |
| Material family | NBR |
| Hardness | 80 Shore A |
| OXXRING SKU | OXX-OR-100P0-6P0-NBR-80A-P10 |
| Ordering | Buy online |
Check this size for your application
Free engineering tools, already filled in with 100.00 × 6.00 mm NBR.
Same size, other materials and hardness
Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.
| Size | Material | Size reference | Smallest pack | Ordering | Action |
|---|---|---|---|---|---|
| 100.00 × 6.00 mm3.937 × 0.236 in | FKM 80A | — | $28.18 / 5 pcs $5.64 / pc | Available to order | Choose pack |
| 100.00 × 6.00 mm3.937 × 0.236 in | EPDM 70A | — | $15.59 / 10 pcs $1.56 / pc | Available to order | Choose pack |
| 100.00 × 6.00 mm3.937 × 0.236 in | Silicone 70A | — | $43.38 / 10 pcs $4.34 / pc | Available to order | Choose pack |
| 100.00 × 6.00 mm3.937 × 0.236 in | FFKM 75A | — | $317.15 / pc $317.15 / pc | Available to order | Choose pack |
Nearby listed sizes
For comparison only. A nearby size is not an equivalent; confirm the gland dimensions or ask for a review before substituting.
NBR material notes
Usually a good starting point for
Mineral oils, many fuels, hydraulic fluids and aliphatic-hydrocarbon service.
Review before use with
Review ozone/weathering, flex fuels, aromatic or chlorinated hydrocarbons, ketones, esters, polar solvents, glycol brake fluid and strong acids.
Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.
Questions about this O-ring
How do I confirm this is the right size?
Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 100.00 × 6.00 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide
How is the price calculated?
The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.
Can I order a quantity that is not in the pack list?
Yes. Order several packs, or request a quote for larger or scheduled quantities.
