NBR O-ring · AS568-205 size reference

O-Ring 10.69 × 3.53 mm · NBR · 90A

  • ID10.69 mm0.421 in
  • CS3.53 mm0.139 in
  • MaterialNBR
  • Hardness90 Shore A

OXXRING SKU OXX-OR-10P69-3P53-NBR-90A-P500

O-Ring 10.69 × 3.53 mm · NBR · 90A

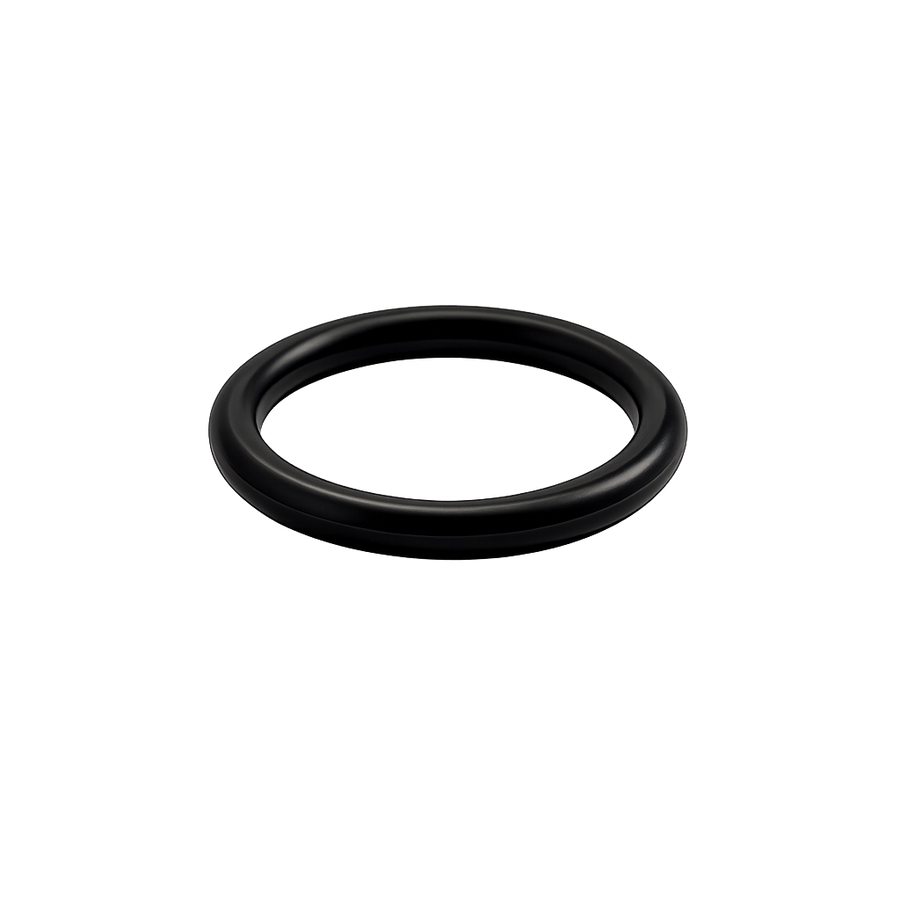

Representative image. Colour can differ by compound.
ID 10.69 mm CS 3.53 mm SECTION
Nominal dimensions. Drawing is proportional, not to scale.
PDF Technical drawingFront and section views with dimensions

Same size, other grades

Compare every grade at this size →
Available to order
$26.23for 500 pcs

$0.052 per piece

1 pack × 500 pcs = 500 pieces · $26.23

Choose a pack size
  • Price is the total for the pack. Taxes and shipping are calculated at checkout.

Need 1,000+ or a different spec? Bulk quote

Standard items: returns per our Refund Policy. Custom items are made to order.

Specifications

Inside diameter (ID)10.69 mm · 0.421 in
Cross section (CS)3.53 mm · 0.139 in
Material familyNBR
Hardness90 Shore A
Size referenceAS568-205, BS1806-205
OXXRING SKUOXX-OR-10P69-3P53-NBR-90A-P500
OrderingBuy online
Check chemical compatibility for NBR Check this size in a groove

Check this size for your application

Free engineering tools, already filled in with 10.69 × 3.53 mm NBR.

Engineer ProRod, piston, face or dynamic seal: squeeze, extrusion and pressure for this exact ring Material selectorMedia, temperature and pressure to the right family Size cross-referenceThis size in AS568, JIS and BS terms CalculatorsWeight, cord length and stretch

Same size, other materials and hardness

Identical nominal ID × CS. Material and hardness change suitability; check the fluid and temperature before switching.

SizeMaterialSize referenceSmallest packOrderingAction
10.69 × 3.53 mm0.421 × 0.139 in FKM 80A AS568-205 $4.99 / 10 pcs $0.50 / pc Available to order Choose pack
10.69 × 3.53 mm0.421 × 0.139 in EPDM 70A AS568-205 $4.99 / 10 pcs $0.50 / pc Available to order Choose pack
10.69 × 3.53 mm0.421 × 0.139 in Silicone 70A AS568-205 $34.17 / 150 pcs $0.23 / pc Available to order Choose pack
10.69 × 3.53 mm0.421 × 0.139 in FFKM 80A AS568-205 $124.08 / 4 pcs $31.02 / pc Available to order Choose pack

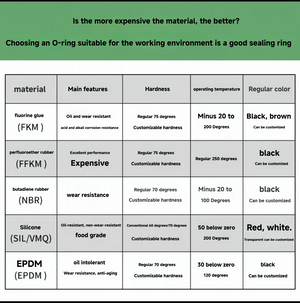

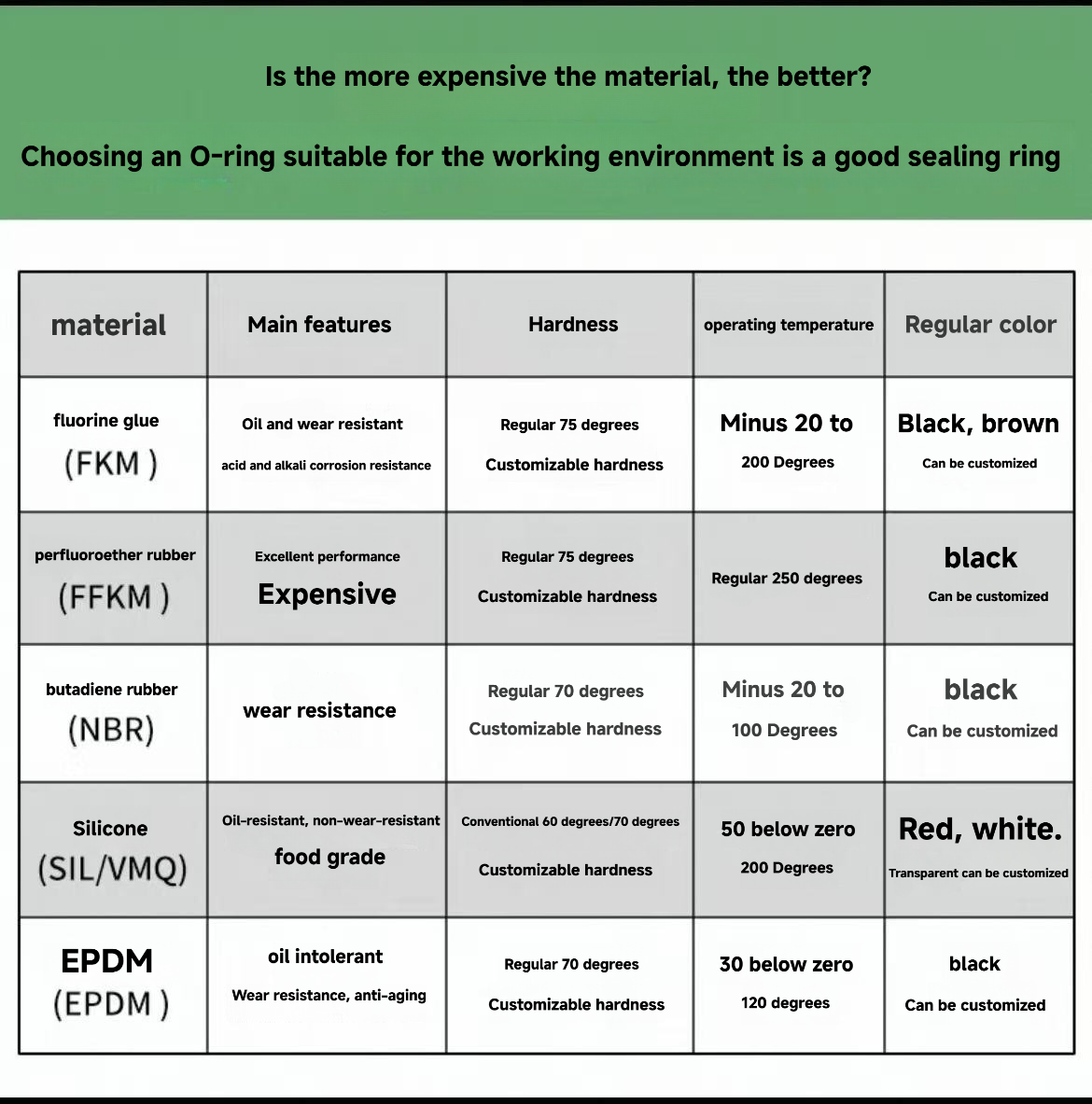

NBR material notes

Usually a good starting point for

Mineral oils, many fuels, hydraulic fluids and aliphatic-hydrocarbon service.

Review before use with

Review ozone/weathering, flex fuels, aromatic or chlorinated hydrocarbons, ketones, esters, polar solvents, glycol brake fluid and strong acids.

Family-level screening, not an approval of a specific compound. Screen a chemical or ask for a material check.

Documents

Questions about this O-ring

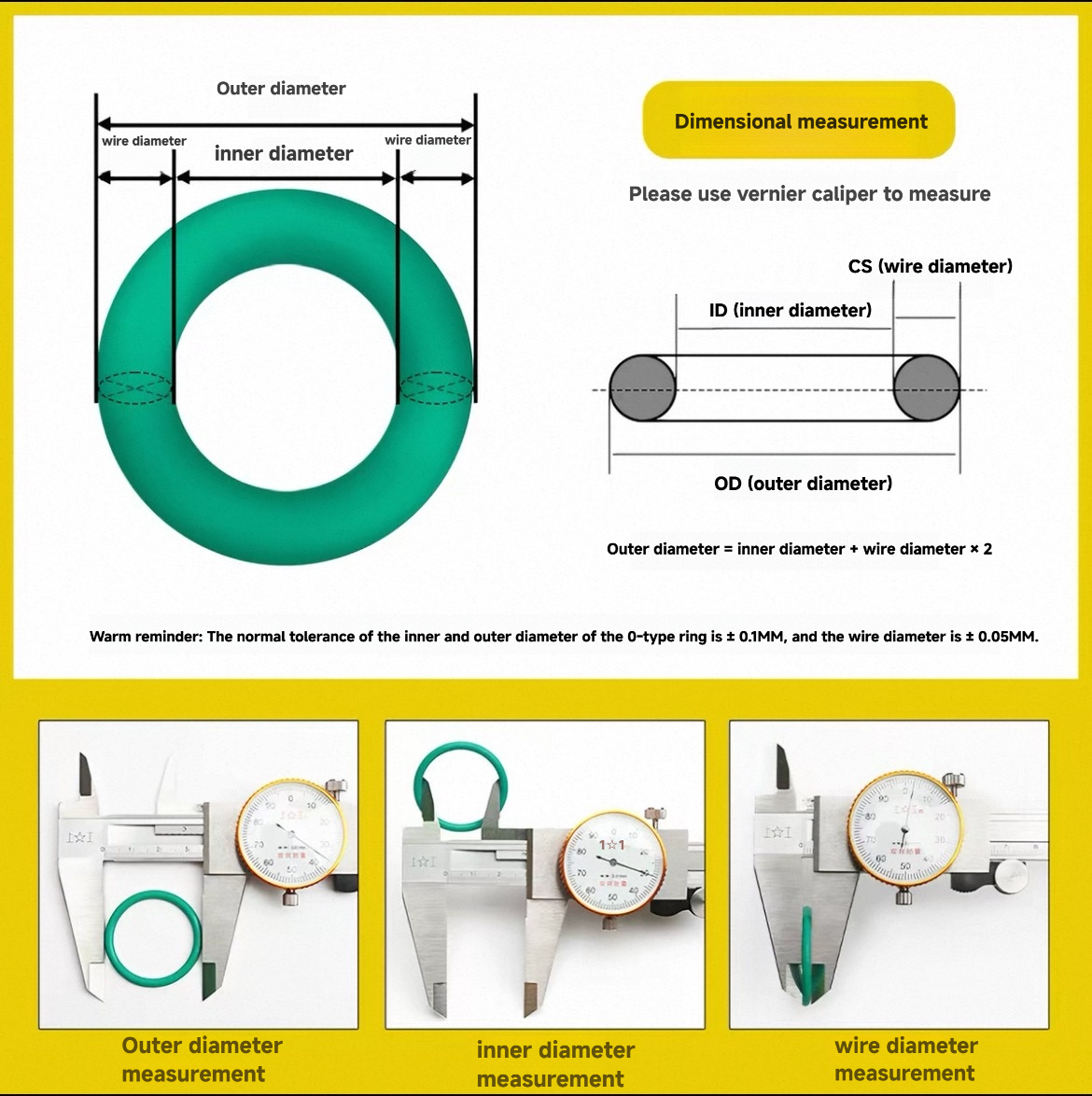

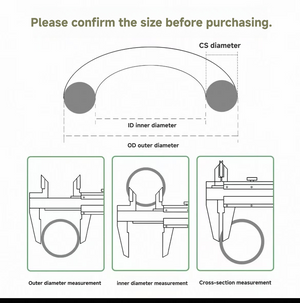

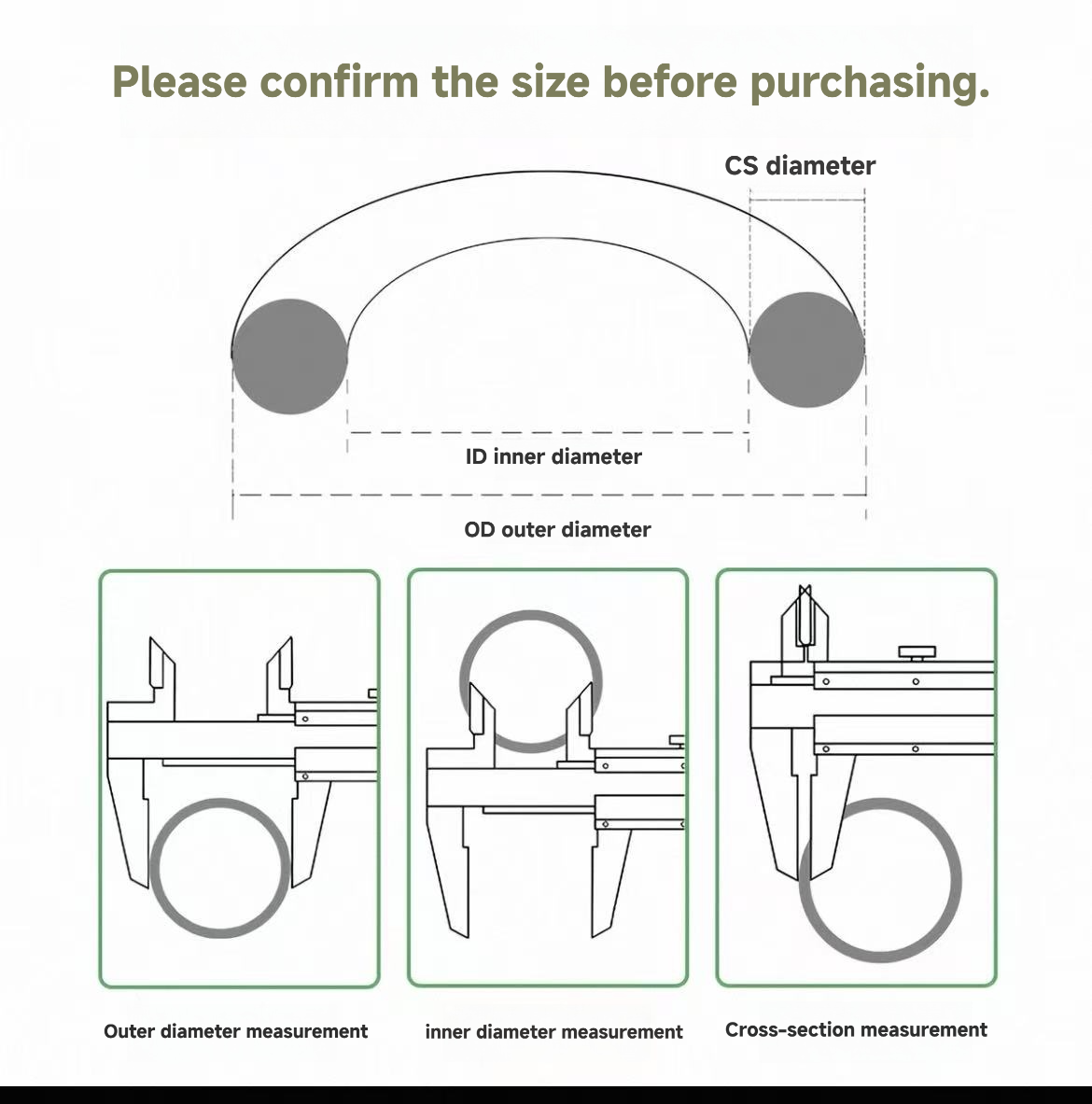

How do I confirm this is the right size?

Measure the inside diameter and the cross section of the ring you are replacing, or read them from the drawing. This listing is 10.69 × 3.53 mm. For a used ring, measure in several places; wear and swelling change the dimensions. Measurement guide

How is the price calculated?

The price shown is the total for one pack. The per-piece price is shown beside it for comparison. Choose how many packs you need; taxes and shipping are calculated at checkout.

Can I order a quantity that is not in the pack list?

Yes. Order several packs, or request a quote for larger or scheduled quantities.

Is the size reference a certification?

No. A size reference such as AS568 or ISO 3601 describes nominal dimensions. It does not certify the compound or approve the part for a specific application.
