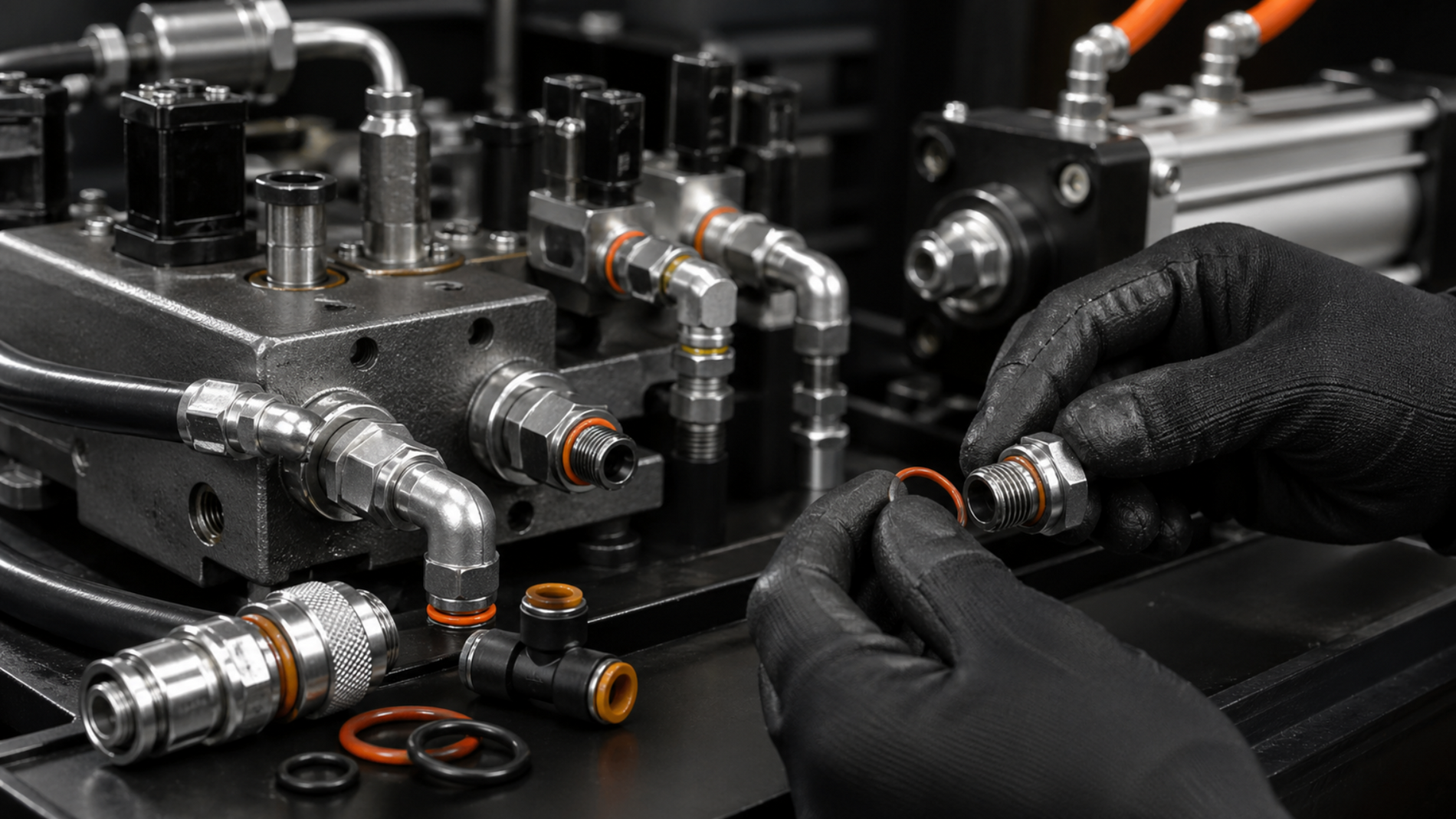

O-Rings for Hydraulic Fittings and Pneumatic Connectors
Hydraulic fittings and pneumatic connectors both use O-rings to help seal fluid or air paths, but the working conditions are not the same.
Hydraulic systems often involve oil, pressure, heat, and movement. Pneumatic systems usually involve compressed air, lower fluid exposure, and different installation conditions. That means size and material both matter.
If you already know the size, material, and hardness, you can search O-ring small packs. If the pressure, fluid, or material is unclear, use Bulk Quote before ordering.
Quick answer
For many hydraulic oil applications:
NBR is often the first material to check, especially for general oil and grease conditions.
For fuel, higher heat, or tougher oil exposure:
FKM may be a better material to review.
For pneumatic air connectors:
The right choice depends on size, pressure, temperature, and whether oil mist or chemicals are present.
Start with the size
Before choosing material, confirm the size as clearly as possible.
Most metric O-ring sizes are written as:
ID × CS
ID means inner diameter. CS means cross section, or the thickness of the rubber ring.
If you are replacing an old O-ring, do not stretch it while measuring. Use a digital caliper if possible. If you are not sure how to measure, start with how to measure an O-ring by ID, CS, and OD.
If you know the size but are not sure how it matches a listed product, read the O-Ring Size Chart Guide.
Hydraulic fittings: what to check
Hydraulic fittings can be more demanding because they may involve pressure, oil, heat, vibration, and repeated movement.
Before choosing an O-ring for a hydraulic fitting, check:
- Hydraulic fluid type
- Pressure level
- Temperature range
- Static or moving seal position
- O-ring size and groove fit
- Material and hardness
- Quantity needed
For general hydraulic oil, NBR is often the practical starting point. For hotter oil, fuel-related exposure, or more demanding conditions, FKM may be worth checking.
For a deeper material overview, read Best O-Ring Material for Fuel, Oil, and Hydraulic Systems.
Pneumatic connectors: what to check
Pneumatic connectors usually seal compressed air, but the application can still vary.
Some pneumatic systems are clean and simple. Others may include oil mist, higher pressure, outdoor exposure, or temperature changes.
Before choosing an O-ring for a pneumatic connector, check:
- Air pressure
- Temperature range
- Whether oil mist is present
- Indoor or outdoor use
- Connector size
- Material requirement, if specified
If the system is simple and the material is already known, small packs may be enough. If the connector is part of special equipment or the material is unclear, use Bulk Quote instead of guessing.
NBR or FKM for hydraulic and pneumatic use?
NBR and FKM are common materials to compare for oil, fuel, and machinery applications.
| Condition | Material to check first | Notes |
|---|---|---|
| General hydraulic oil | NBR | Often practical for many standard oil applications |
| Fuel or engine-area exposure | FKM | Often better to review for fuel and higher heat |
| Compressed air only | Depends on connector spec | Check pressure, temperature, and material requirement |
| Oil mist in air lines | NBR or FKM | Depends on oil type and temperature |
| Unknown fluid or condition | Do not guess | Use Bulk Quote |
For a direct comparison, read NBR vs FKM O-Rings.
Do not choose by size alone
A correct size with the wrong material can still fail.
This matters especially in hydraulic systems because pressure, oil, heat, and movement can be hard on the O-ring. It also matters in pneumatic systems if oil mist, outdoor exposure, or special equipment is involved.
Before ordering, check both:
- The size: ID and CS
- The material: NBR, FKM, EPDM, Silicone, or another specified material
For broader material selection, read the O-Ring Material Guide. For fluid exposure, check the Chemical Compatibility Guide.
When small packs make sense
Use Shop Small Packs when you know:
- The exact size
- The material
- The hardness, if required
- The quantity you need
- The application is not unclear or high-risk
Small packs are a good route for basic replacement and maintenance jobs when the specification is clear.
When to use Bulk Quote
Use Bulk Quote when:
- You need 100+ pcs.
- The size is not listed.
- The material is unclear.
- The system involves high pressure, heat, fuel, or special fluids.
- You have a drawing, sample, or connector part number.
- The O-ring is for special equipment or a critical repair.
For hydraulic fittings and pneumatic connectors, a photo, drawing, or part number can be very helpful when the size is uncertain.
What to send when asking for help
If you are not sure which O-ring to use, include as much of this as possible:
- Inner diameter
- Cross section
- Outer diameter, if measured
- Material, if known
- Hardness, if known
- Hydraulic fluid, oil, air, or gas exposure
- Pressure range, if known
- Temperature range, if known
- Connector type or part number
- Quantity needed
- Photo, drawing, or old sample details
You do not need every detail before asking, but more information helps reduce wrong-size and wrong-material choices.
Simple decision path
General hydraulic oil and normal repair:
Start by checking NBR.
Fuel, heat, or tougher oil exposure:
Check FKM first.
Compressed air connector with known size and material:
Search small packs.
Unknown pressure, fluid, or connector requirement:
Use Bulk Quote before ordering.
Final checklist before ordering
- Confirm the O-ring size as ID × CS.
- Check whether the system is hydraulic or pneumatic.
- Confirm oil, air, fuel, heat, or chemical exposure.
- Choose material based on the working conditions.
- Use Bulk Quote if the job is unclear or high-risk.
For more use cases, see Common O-Ring Applications. If you do not know the size, read what to do if you don't know your O-ring size.
FAQ
What O-ring material is used for hydraulic fittings?
NBR is often used for many general hydraulic oil applications. FKM may be considered when heat, fuel, or tougher fluid exposure is involved.
Can I use the same O-ring for pneumatic connectors?
Not always. Pneumatic connectors may have different pressure, temperature, and material requirements. Check the connector specification if possible.
Are hydraulic O-rings always NBR?
No. NBR is common, but the right material depends on the hydraulic fluid, temperature, pressure, and application.
Should I choose FKM for hydraulic systems?
FKM may be useful for higher heat, fuel-related exposure, or tougher oil conditions. For general hydraulic oil, NBR may still be the practical starting point.
Should I order small packs or request a quote?
Order small packs when the size, material, and quantity are clear. Use Bulk Quote for 100+ pcs, unclear material, high pressure, heat, fuel, drawings, samples, or special connector requirements.
