Pressure Washer O-Ring Replacement: How to Fix a Leak Without Buying the Wrong Ring

Short answer

If your pressure washer is leaking at the quick connect, wand, spray gun, hose, or M22 fitting, the O-ring may be cut, flattened, worn out, missing, or just the wrong size. The best move is to find the exact leak point, figure out whether you are working with a 1/4-inch or 3/8-inch fitting context, measure the old ring or the groove, and then pick a material that makes sense for the real water, cleaner, heat, and duty conditions. If the size is clear, buy a small pack. If it is not, stop guessing and move the job to Bulk Quote.

Most people are not searching for an O-ring. They are searching for a way to stop a leak.

That is the real starting point.

Usually it looks like one of these:

• the quick connect started dripping
• the wand leaks when the machine is running
• a coupler seals during a quick check, then starts leaking under pressure
• the old O-ring fell out and now you have nothing to match
• the new ring looked close enough, but it still leaks or keeps popping out

That is why this topic has to be written like a repair problem first and a buying problem second. Real comments, repair videos, and forum threads all point to the same thing: buyers often know the connector style, but they do not know the actual O-ring size.

Where pressure washer O-rings usually fail

Most of the trouble shows up around:

• quick connect couplers and plugs
• spray gun inlet and outlet connections
• wand and lance joints
• hose-to-gun connections
• M22-style hose fittings

Common signs:

• dripping from the wand end
• water spraying at the quick connect
• a ring that looks torn, flat, or hard
• a seal that seems okay until the washer is fully running
• spray performance getting worse after the seal wears down

One important point: not every leak is an O-ring problem.

Sometimes the ring is bad. Sometimes the seat is worn. Sometimes the coupler is damaged. Sometimes the threads are part of the problem. If you skip that check, you can replace the ring and still end up right back where you started.

OEM and parts-manual evidence backs that up. Pressure washer manuals and parts diagrams do not treat O-rings like random universal accessories. They show them tied to specific guns, quick connects, pump assemblies, repair kits, and replacement part groupings. In other words, the hardware context matters.

The biggest mistake: confusing fitting size with O-ring size

A lot of buyers search like this:

• 1/4 quick connect O-ring
• 3/8 quick connect O-ring
• pressure washer hose O-ring
• M22 O-ring replacement

That language is useful, but it does not give you the O-ring dimensions by itself.

In real repair content, the job is often framed like this:

• fittings from the gun back toward the machine are often discussed in a 3/8-inch context
• fittings from the gun forward toward the nozzle are often discussed in a 1/4-inch context

That helps narrow the location. It does not prove the exact ring size.

This is where people get burned. They see 3/8 on the fitting, buy the first ring that sounds related, and then wonder why it still leaks.

What real users keep running into

After going through transcripts, comments, and forum threads, the same problems show up over and over:

• "What size O-ring do I need?"
• "Mine keeps popping out."
• "The old one is missing."
• "I tried a few that looked close and none of them worked."
• "It held during a quick test, then failed once pressure was on it."

That last one matters a lot.

A ring can look close enough on the bench and still fail when the machine is actually doing its job. That is why this article leans so hard on measuring instead of guessing.

The newer social/video evidence says the same thing in a more blunt way. Facebook repair videos with six-figure view counts and five-figure reactions are still pulling comments from people asking where the leak is really coming from, whether the seal order is wrong, and why a quick fix worked for a minute and then failed. That is a strong sign this is not a dead maintenance topic. It is still active, still confusing, and still worth solving well.

How to find the right replacement

1) Find the exact leak point

Before you measure anything, make sure you know where the leak is coming from:

• quick-connect coupler
• quick-connect plug side
• hose fitting
• spray gun inlet
• spray gun outlet
• wand or lance joint
• M22 connection

Different spots on the same machine can use different seals. If you misread the leak point, everything after that gets shakier.

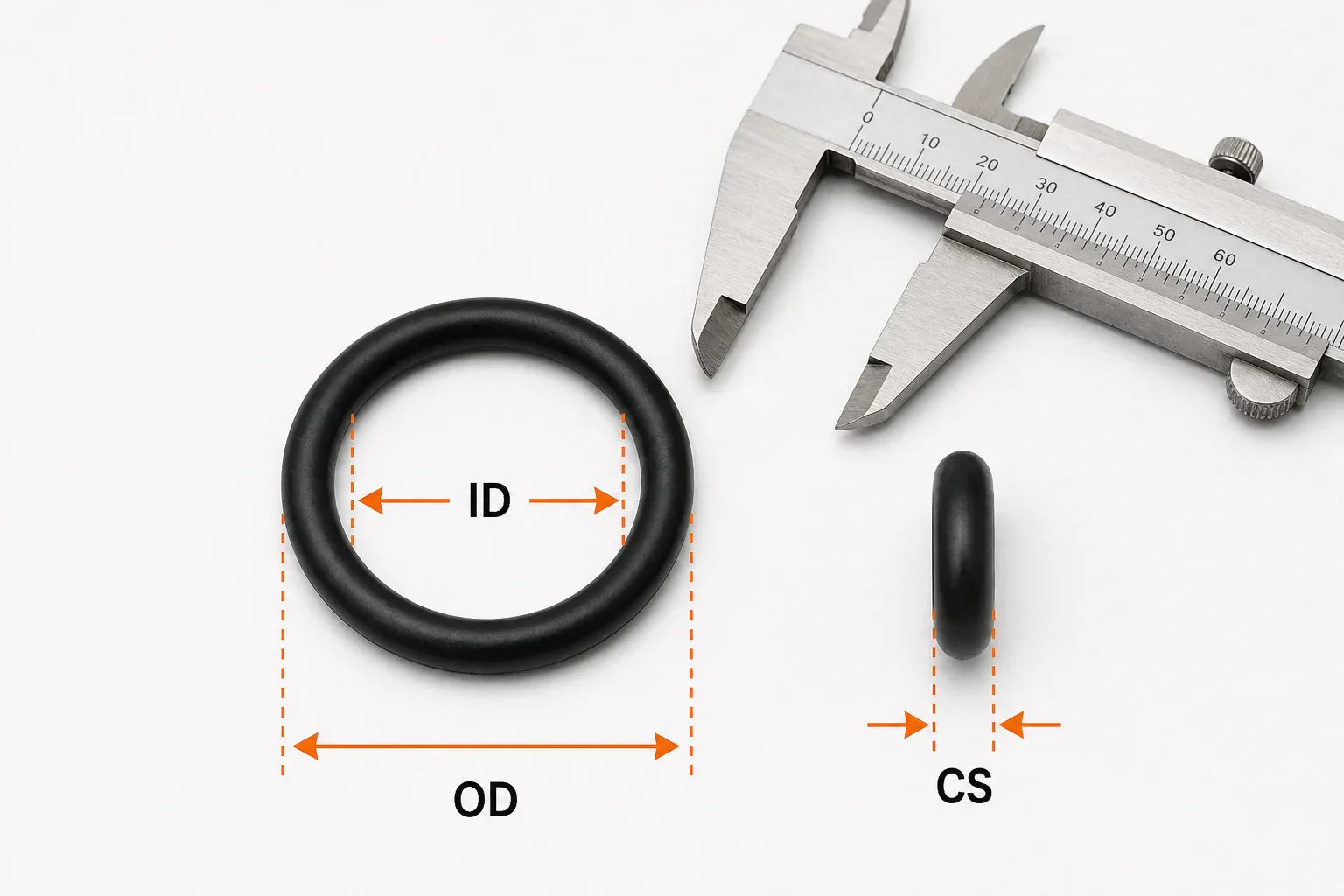

2) Measure the old O-ring if you still have it

If the old ring is still usable, record:

• ID: inside diameter
• CS: cross section thickness
• OD: outside diameter, if you want a check value

Quick formula:

• OD = ID + 2 x CS

If the ring is stretched, flattened, nicked, or chewed up, do not trust one fast measurement and call it done.

3) Measure the groove if the old ring is damaged or missing

This is often the safer move.

A lot of failed pressure washer O-rings are already distorted from pressure, heat, repeated disconnects, or cleaner exposure. If the old seal looks rough, the groove and mating surface are usually better references.

4) Do not buy by "looks close enough"

This is one of the easiest ways to waste time.

Real forum evidence shows that a ring can seem fine during a light hose-pressure check and still blow out once the washer is under real working pressure. If you are comparing near matches, stop and verify the dimensions.

Material choice matters, but not the way most people think

Pressure washer buyers usually compare some version of:

• NBR
• FKM
• EPDM
• Silicone

The right answer depends on what the machine is actually seeing.

A simple way to think about it:

• NBR is often considered for general sealing jobs where oil resistance matters.
• FKM is often considered when heat is higher or the service conditions are tougher.
• EPDM is often discussed for water-related conditions, but that does not make it the answer for every mixed-media setup.
• Silicone can make sense in some cases for flexibility or temperature range, but it is not a default pressure-washer fix.

Marketplace evidence also backs up the idea that material choice is not just technical theory. Buyers really do shop pressure washer quick-connect replacement rings by material, especially when heat and cleaner exposure enter the picture.

What you do not want to do is treat any one material like a universal answer.

Common repair situations

Quick-connect leak

Start by confirming whether you are dealing with a 1/4-inch or 3/8-inch fitting context. Then check the actual O-ring dimensions before you buy anything.

Wand leak or spray-gun-end drip

This is one of the most common failure spots in repair content. If the wand end is dripping or spraying, inspect the ring, the seat, and the fitting condition together.

Old O-ring fell out

This is where wrong-size purchases pile up fast. If the ring is gone, use the groove and fitting as your reference instead of guessing from memory.

Manuals and parts pages also show why repair kits keep coming up in this category. A lot of users are not replacing one elegant, perfectly documented seal. They are dealing with field repairs, quick connect accessories, wand hardware, and mixed replacement parts where the original seal may already be lost.

Ring keeps popping out

That usually points to one of these:

• wrong size
• wrong cross section
• groove or seat damage
• installation issue

Hot-water or heavy-use setup

If the washer runs hot or sees stronger cleaners, material choice matters more. Buyers in this situation usually need more than "any black rubber ring."

A practical replacement workflow

1. Find the leak point.
2. Figure out the fitting context: 1/4, 3/8, M22, or something else.
3. Remove the old ring if you can.
4. Measure ID and cross section, or measure the groove if the old ring is too damaged.
5. Inspect the seat and fitting for wear or damage.
6. Compare material options based on actual use conditions.
7. Buy a small pack only when the size and material are clear.
8. Use Bulk Quote when they are not.

When a small pack is the right move

Go to Shop Small Packs when:

• you know the size
• the material choice is clear enough
• you only need a few pieces
• this is a normal repair or maintenance job

That matches how people actually buy. A lot of pressure washer users are not looking for industrial quantity. They just want the right spare ring so they can fix the leak and move on.

When Bulk Quote is the safer move

Use Bulk Quote when:

• the size is unknown
• the old ring is missing
• the old ring is too damaged to trust
• the repair already failed under pressure
• the setup involves unusual heat, chemicals, or duty cycle
• you need help matching a sample, drawing, or OEM reference
• you need larger quantity or a less common material

For this kind of repair, one good answer is cheaper than three wrong orders.

That is also what the better Facebook troubleshooting posts and high-engagement repair clips point to. People do not just want a bag of rings. They want to know the right stack order, the right leak point, and whether they are fixing the O-ring, the seat, or the fitting.

Buying mistakes to avoid

Do not treat connector size like seal size

A 3/8 quick connect does not automatically tell you the ring dimensions.

Do not assume every leak means "replace the O-ring"

Sometimes the real problem is the seat, the coupler, or the threads.

Do not trust a near match under load

A ring that seems okay during a quick test can still fail once the machine is fully pressurized.

Do not use universal-fit thinking

Pressure washer seals vary by fitting style, groove, compression, and service conditions.

Best next steps

• If you need help measuring, use the O-ring Size Guide.
• If you are stuck on material choice, use the Material Guide.
• If the size is known and you only need a few replacements, go to Shop Small Packs.
• If the size is not clear or the repair is higher risk, go to Bulk Quote.

FAQ

What size O-ring does a pressure washer quick connect use?

There is no single universal quick-connect O-ring size. Start with the fitting context, then measure the old ring or groove before buying.

Is 3/8 the same as the O-ring size?

No. In many cases, 3/8 describes the fitting context, not the actual O-ring dimensions.

Why does my new ring still leak?

Common reasons include the wrong ID, the wrong cross section, the wrong material, poor seating, or damage in the fitting itself.

Which material is best for pressure washer O-rings?

That depends on the real water, cleaner, heat, and duty conditions. Buyers often compare NBR, FKM, EPDM, and Silicone, but none of them should be treated as the one automatic answer.

When should I buy a small pack instead of requesting a quote?

Buy a small pack when the size and material are already clear and you only need a few pieces for a normal replacement job.

When should I use Bulk Quote?

Use Bulk Quote when the size is unknown, the old seal is missing, the repair failed under pressure, or you need help matching the right ring.

Final takeaway

Most pressure washer O-ring problems are not really about buying a ring. They are about buying the right ring. Find the leak point, separate fitting language from actual seal size, measure carefully, and only self-buy when the answer is clear. If it is not, get help before you waste time on another leak.
