Metric O-Ring Size Chart: How to Read ID x CS
Quick Answer
Metric O-rings are commonly described as ID x CS: inside diameter first, cross-section thickness second. OD is useful as a check, especially because OD = ID + 2 x CS. If size and material are already known, use Shop Small Packs. If measurement is uncertain, use the Size Guide. If material is unclear, use the Material Guide. For drawings, samples, special quantities, or review-needed jobs, use Bulk Quote.
Definitions
- ID: inside diameter, or the opening through the O-ring.
- CS: cross section, or the thickness of the ring body.
- OD: outside diameter, often used as a check after ID and CS are known.
Step-by-Step Metric Size Check
- Read the size as ID x CS.

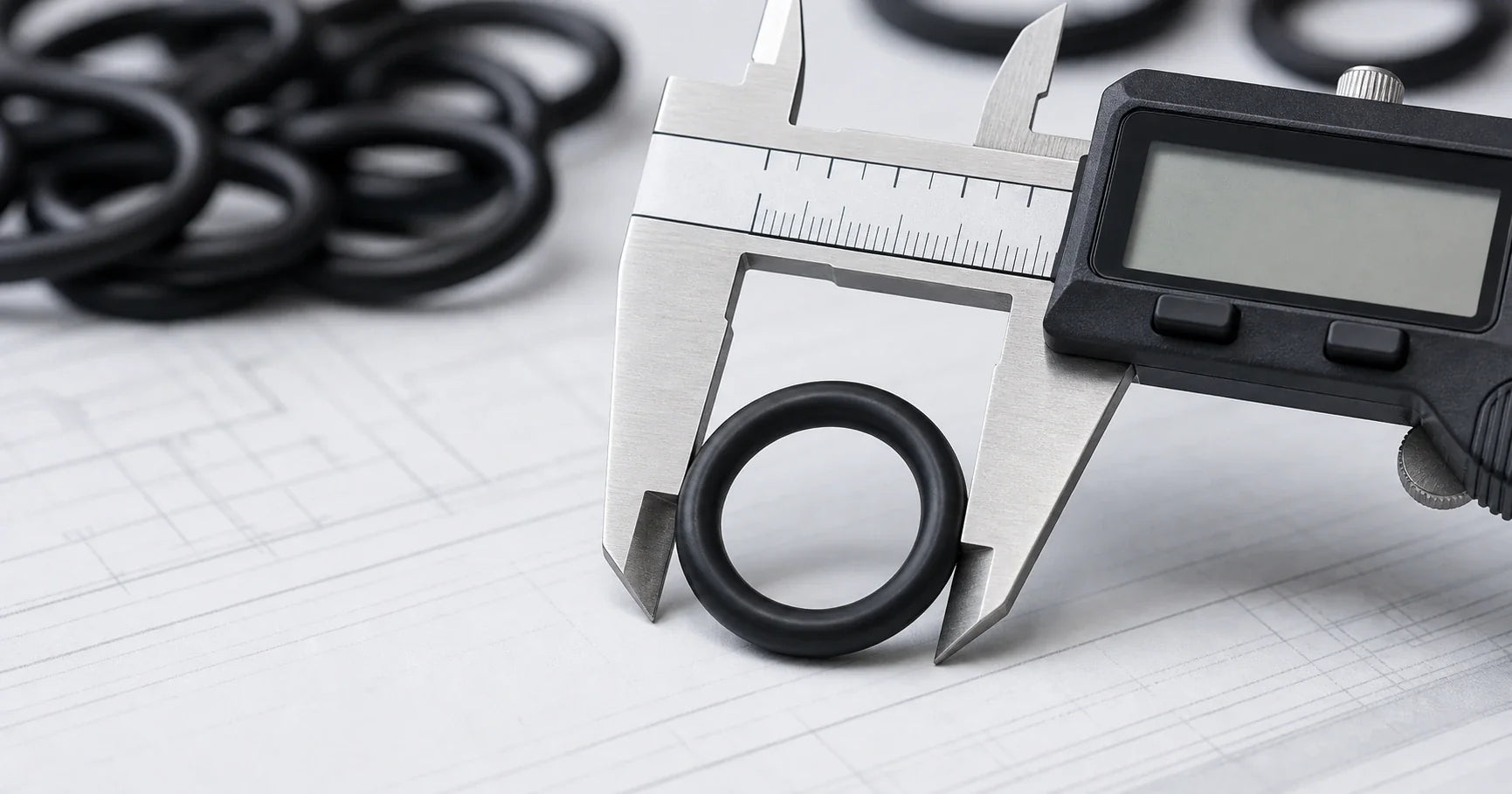

- Measure ID and CS more than once if the old part is worn.
- Use OD = ID + 2 x CS as a sanity check.
- Compare against the groove or drawing if the old ring is stretched or flattened.
- Review the material path before buying.
- Use Shop Small Packs for known small-quantity replacement or Bulk Quote when review is needed.
Metric vs AS568 Decision Path
Metric labels and AS568 dash sizes are different ways to describe O-ring sizes. Do not assume the systems are interchangeable. Confirm dimensions and application requirements before substituting one path for another.
Common Metric Sizing Mistakes
- Reading OD as the primary size when the listing actually expects ID x CS.
- Measuring a flattened used ring only once and treating that number as final.
- Skipping material review after finding a matching diameter.
- Assuming a close inch-size reference automatically replaces a metric size.
Buying Path
Use Shop Small Packs when the metric size, material, and quantity are already clear. Use the Size Guide when the measurement is uncertain, the Material Guide when material choice is still open, and Bulk Quote when the order depends on a drawing, sample, special quantity, or review-needed detail.
FAQ
What should I do first if I already know the size?
Go to Shop Small Packs when the size, material, and quantity are clear.
What if I do not know the O-ring size?
Start with the Size Guide and measure ID and CS before ordering.
What if I am not sure about material?
Use the Material Guide to compare material families before choosing a product path.
When should I use Bulk Quote?
Use Bulk Quote for samples, drawings, unusual setups, larger quantities, or any review-needed requirement.
Evidence Layer
Evidence level: scene_inference_only. GSC and GA4 need separate OAuth repair before own-site metrics can be used. Semrush keyword evidence is not used when quota/runtime status is blocked. SerpAPI, when available, is used only for SERP intent, not search volume, ranking, traffic, or conversion claims.
Final Takeaway
Use the article as a decision path, not as a performance promise: identify the sizing system, confirm the dimensions, review material separately, and choose the correct buying route.
