Measuring an O-ring correctly is the first step to choosing the right replacement seal. The three most important dimensions are ID, OD, and CS: inside diameter, outside diameter, and cross section. For most replacement orders, the two dimensions you need most are the inside diameter and the cross section.
If you already have an old O-ring, use a caliper to measure it carefully before ordering. A small measurement mistake can lead to leakage, poor compression, or premature seal failure.
What Do ID, OD, and CS Mean on an O-Ring?
O-ring sizes are usually described by their inside diameter and cross section.
ID, or inside diameter, is the distance across the inner opening of the O-ring.
OD, or outside diameter, is the full outside width of the O-ring from one outer edge to the opposite outer edge.
CS, or cross section, is the thickness of the O-ring body. It is the diameter of the round rubber section.
The basic formula is:
OD = ID + (2 × CS)
For example, if an O-ring has a 22.50 mm inside diameter and a 2.50 mm cross section, the outside diameter is:
22.50 + (2 × 2.50) = 27.50 mm
Tools You Need to Measure an O-Ring
The best tool for measuring an O-ring is a digital caliper. A ruler can help with rough checking, but it is usually not accurate enough for small O-rings.
For better results, use:
-
A digital caliper
-
A clean, flat surface
-
A non-stretched O-ring
-
Good lighting
-
A size chart for comparison
Do not stretch the O-ring when measuring it. Stretching can make the inside diameter look larger than it really is.

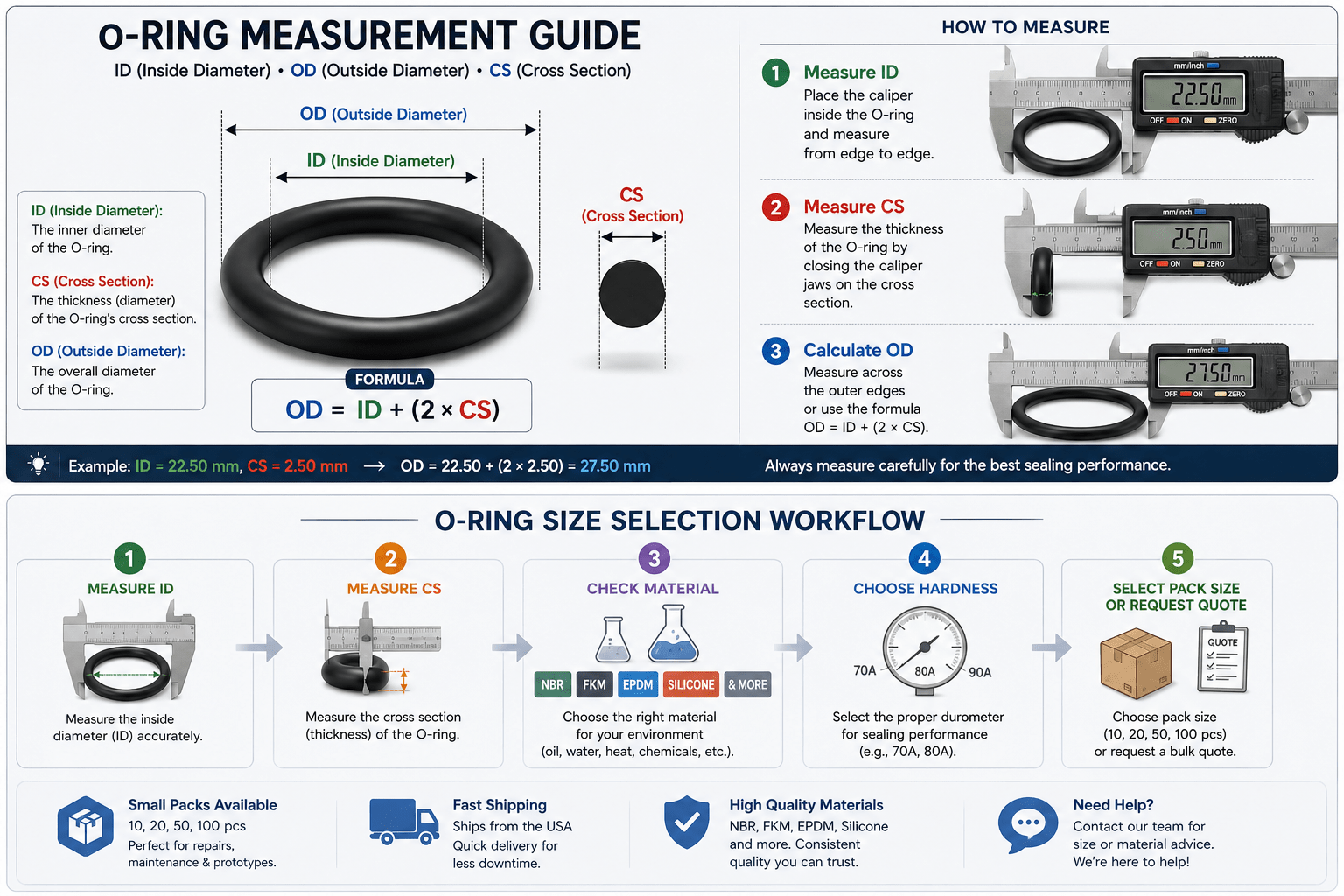

Step 1: Measure the Inside Diameter
Place the O-ring on a flat surface. Use the inside jaws of the caliper to measure the inner opening from one side to the other.
This measurement is the ID.
Try not to pull or deform the rubber while measuring. If the O-ring is old, swollen, cracked, or flattened, measure it carefully and compare the result with a standard size chart.
Step 2: Measure the Cross Section
Next, measure the thickness of the O-ring body. This is the cross section.
Use the caliper jaws to gently close around the rubber section. Do not squeeze too hard, because rubber can compress and give you a smaller reading.
Measure the cross section at more than one point if the O-ring looks worn or uneven.
Step 3: Calculate or Confirm the Outside Diameter
Once you know the ID and CS, you can calculate the OD using this formula:
OD = ID + (2 × CS)
You can also measure the outside diameter directly with a caliper, but ID and CS are usually more useful when matching a replacement O-ring.
For example:
| Dimension | Example Measurement |
|---|---|
| Inside Diameter | 22.50 mm |
| Cross Section | 2.50 mm |
| Outside Diameter | 27.50 mm |
This O-ring would commonly be searched as a 22.50 × 2.50 mm O-ring.
Should You Measure a New or Used O-Ring?
If possible, measure a new or unused O-ring. A used O-ring may be stretched, compressed, swollen, hardened, or damaged by heat and chemicals.
If you only have a used O-ring, check for these signs before trusting the measurement:
-
Flat spots
-
Cracks
-
Swelling
-
Hardening
-
Permanent stretch
-
Uneven thickness
If the O-ring has been used in oil, fuel, water, heat, or chemicals, the material may have changed shape over time. In that case, compare the measurement with the groove size or a standard O-ring size chart.
Metric vs AS568 O-Ring Sizes
O-rings are commonly listed in metric sizes or AS568 dash sizes.
Metric O-rings are usually shown as:
ID × CS
For example:
22.50 × 2.50 mm
AS568 O-rings use standard dash numbers, such as -006, -010, -111, or -214. These are common in the United States and are widely used in industrial, automotive, hydraulic, and maintenance applications.
If you are not sure whether your O-ring is metric or AS568, measure the ID and CS first. Then compare your measurement with both a metric O-ring size chart and an AS568 size chart.
Common O-Ring Measurement Mistakes
Many O-ring problems start with incorrect measurement. Avoid these common mistakes:
-
Measuring only the outside diameter
-
Forgetting to measure the cross section
-
Stretching the O-ring while measuring
-
Measuring a worn or damaged O-ring without checking for deformation
-
Choosing a close size without checking the application
-
Ignoring the material and hardness
-
Assuming all black O-rings are the same material
Size is only one part of the selection process. The material and hardness also matter.
After Measuring: Choose the Right Material
Once you know the size, choose the material based on the application.
NBR / Nitrile O-rings are commonly used for oil, grease, hydraulic fluid, and general industrial sealing.
FKM O-rings are often selected for higher heat, fuel, and chemical resistance.
EPDM O-rings are commonly used for water, steam, outdoor exposure, and weather-resistant sealing, but they are usually not the right choice for petroleum oils.
Silicone O-rings are useful when flexibility and temperature range are important, but they may not be ideal for high-wear dynamic applications.
If you are not sure which material you need, start with the operating environment: oil, fuel, water, steam, heat, chemicals, outdoor exposure, or general repair.
What Hardness Should You Choose?
O-ring hardness is usually measured in Shore A durometer. Common options include 70A and 80A.
A 70A O-ring is a common general-purpose choice. It is flexible enough for many static and light-duty applications.
An 80A O-ring is harder and may be useful when more extrusion resistance or a firmer seal is needed.
Hardness should be selected together with size, material, pressure, groove design, and application conditions.
How to Order the Right Replacement O-Ring
To order the right replacement O-ring, collect this information first:
-
Inside diameter
-
Cross section
-
Material
-
Hardness
-
Quantity
-
Application environment
-
Whether the seal is static or dynamic
For repair work, small packs can be useful because they allow you to test fitment before buying larger quantities. For production, maintenance teams, or repeat orders, a bulk quote may be more efficient.
FAQ
What is the most important O-ring measurement?
The inside diameter and cross section are usually the most important measurements. These two dimensions help identify the correct replacement size.
Can I measure an O-ring with a ruler?
You can use a ruler for rough checking, but a digital caliper is better for accurate measurement, especially for small O-rings.
What does CS mean in O-ring size?
CS means cross section. It is the thickness of the O-ring body.
How do I calculate O-ring OD?
Use this formula: OD = ID + (2 × CS).
Can I replace an O-ring with a slightly different size?
Sometimes a close size may work, but it depends on groove design, compression, pressure, and application. For reliable sealing, match the original size as closely as possible.
Are all black O-rings made from NBR?
No. Many O-rings are black, but color alone does not confirm the material. Black O-rings can be NBR, FKM, EPDM, or other compounds.
Final Tip
Before ordering a replacement O-ring, measure the ID and CS carefully, check the material, and compare your measurements with a reliable size chart. A few minutes of measurement can prevent leaks, downtime, and incorrect orders.
